IUGR – PLACENTOMEGALY – ABNORMAL DOPPLER – UTERO PLACENTAL INSUFFICIENCY


This case stresses the different varieties of presentation of placentomegaly , IUGR and doppler studies. Kindly go through last week’s case  to appreciate the differences.

This was a 23 year old lady with h/o  gravida 2 , para  0 , live , abortion 1 .

She came for a  scan around 29 to 30 weeks of gestation . She had pregnancy induced hypertension  detected 1 week ago .She had no history of hypertension during the earlier pregnancy , when the fetal loss had occurred after 3 months.

Her earlier scan done elsewhere  2 months before was reported as normal .

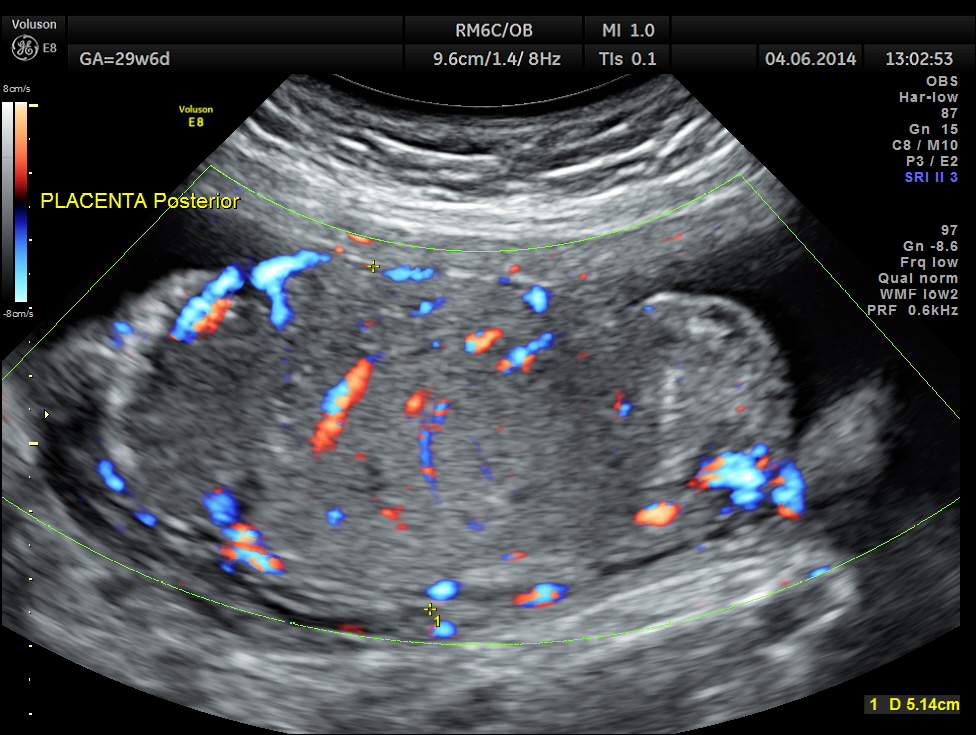

She had a thick placenta , but appears homogenous.



OBS IUGR ABN DOPPLER _5

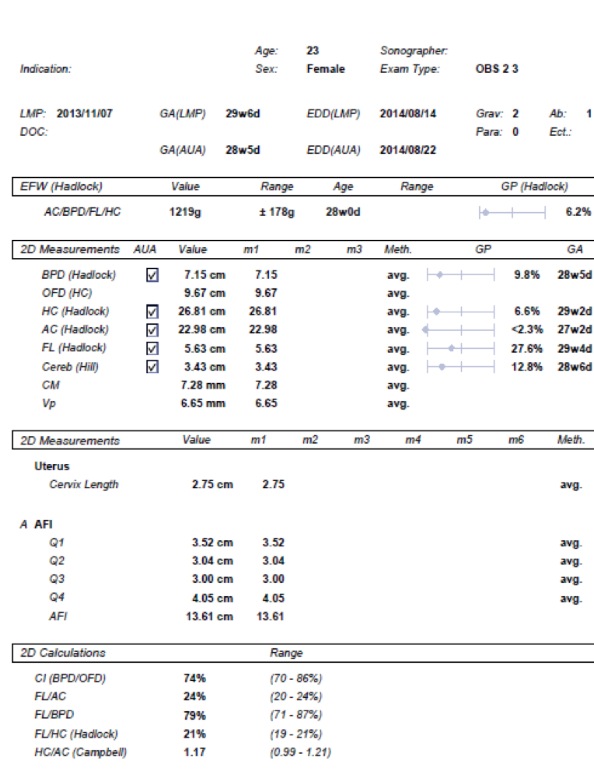

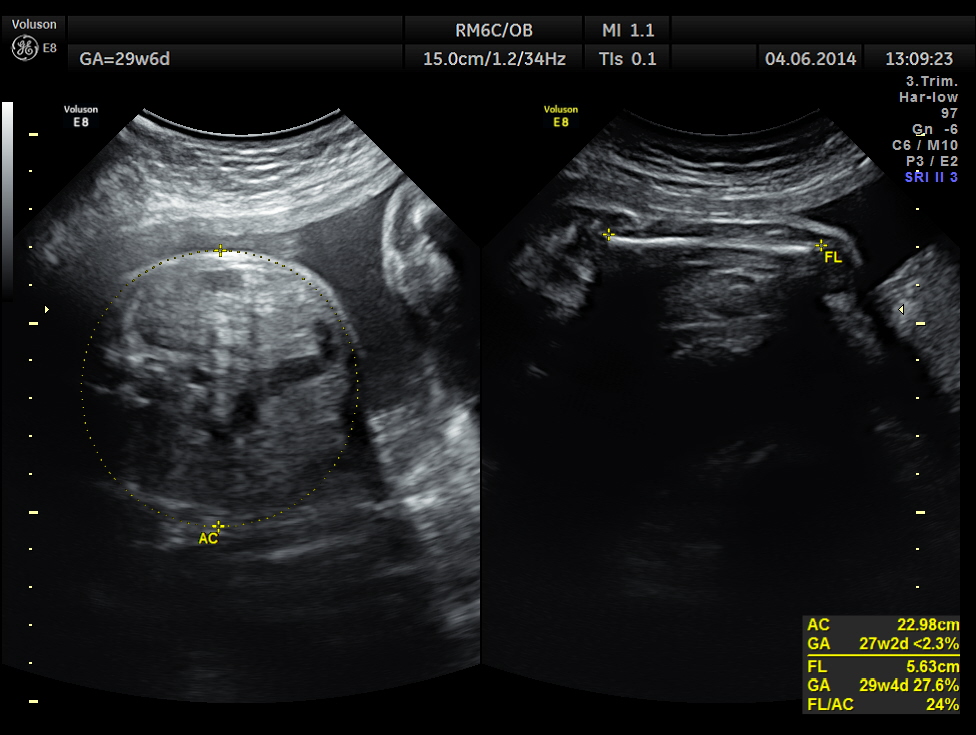

Biometric measurements show AC <2.3 %TILE

OBS IUGR ABN DOPPLER _14



OBS IUGR ABN DOPPLER _11





OBS IUGR ABN DOPPLER _16



OBS IUGR ABN DOPPLER _15

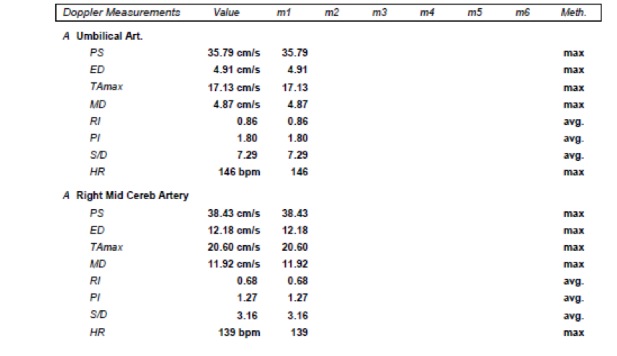

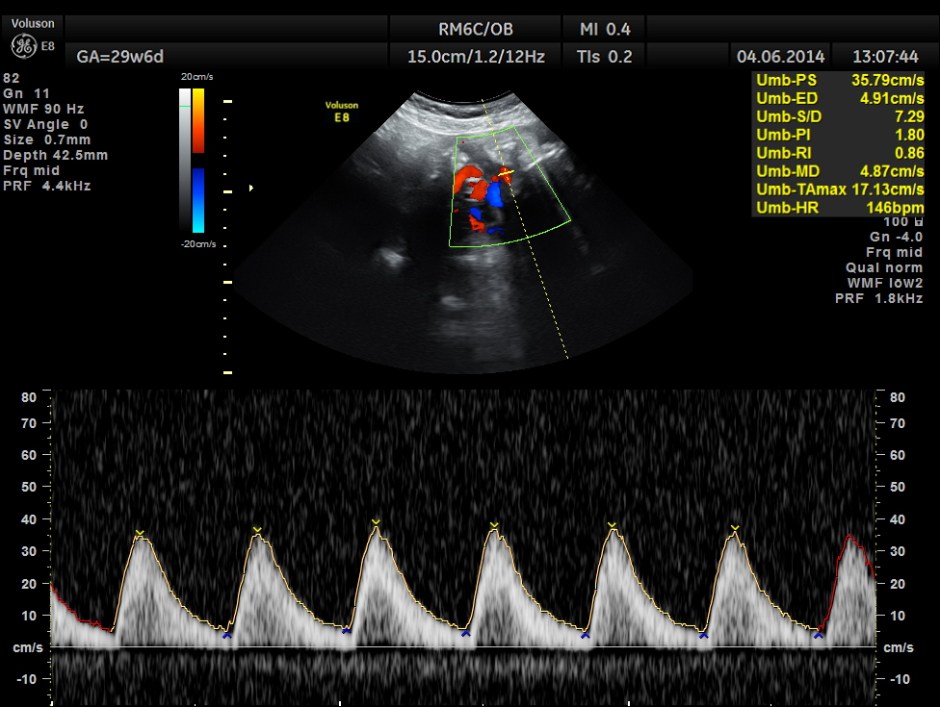

Umbilical artery P.I and R.I are high . The MCA / UMBILICAL arterial ratio is abnormal.

OBS IUGR ABN DOPPLER _10

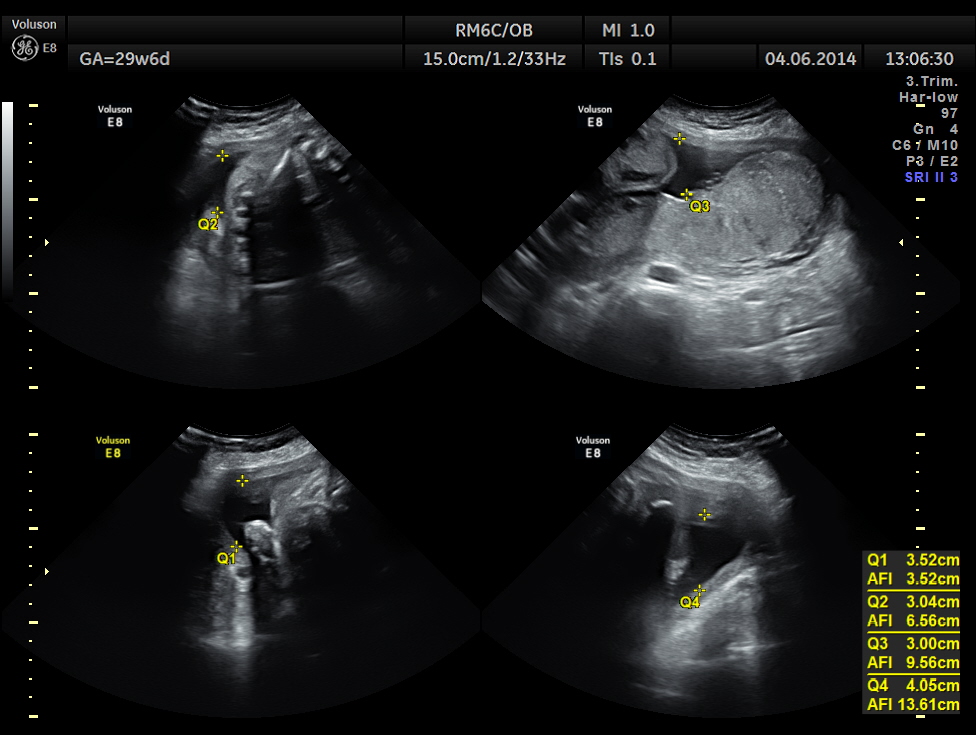

AFI appeared to be normal.

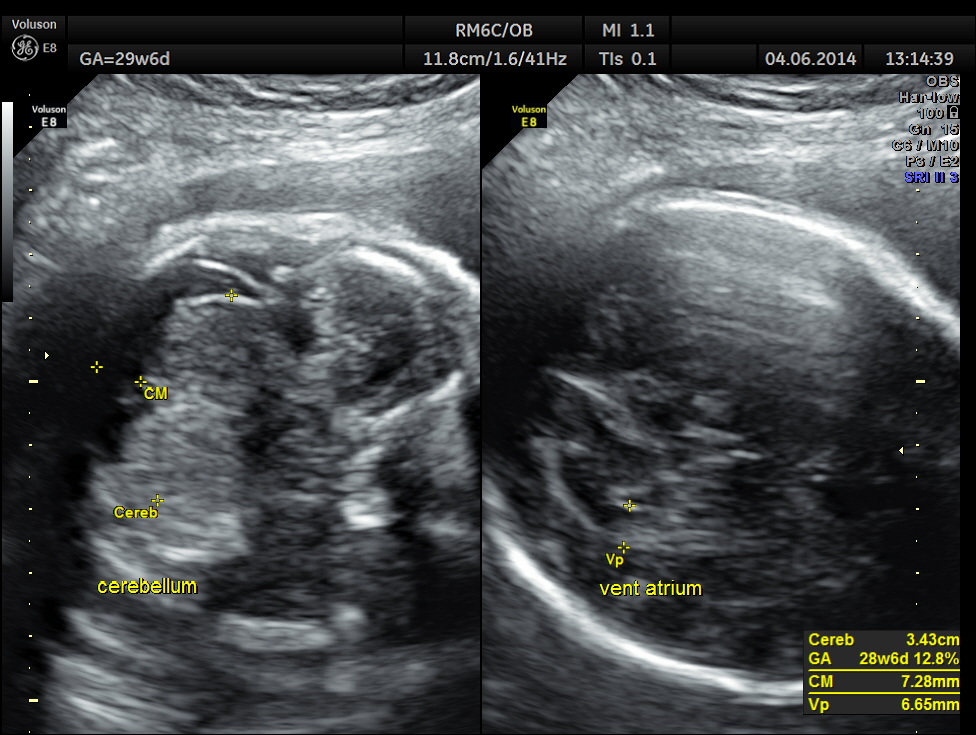

aOBS IUGR ABN DOPPLER _9

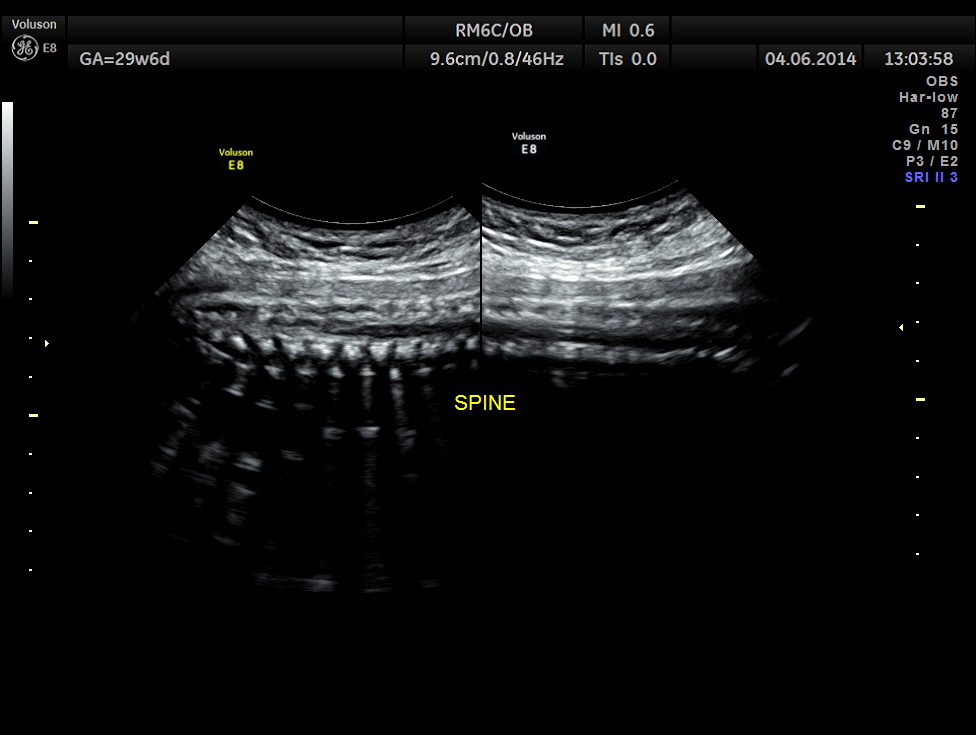

OBS IUGR ABN DOPPLER _6

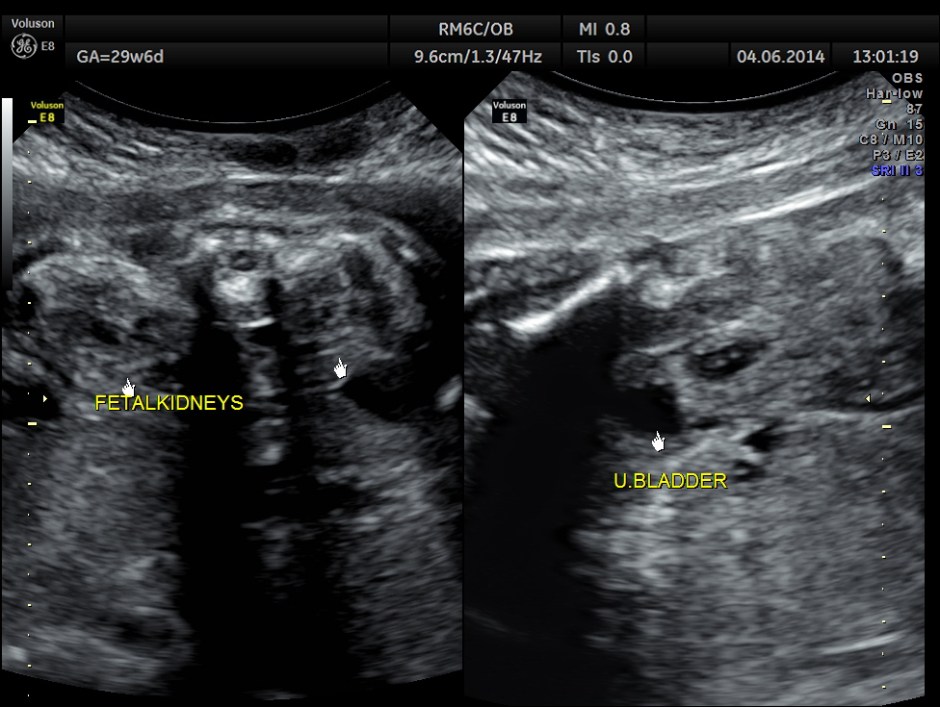

OBS IUGR ABN DOPPLER _4













image (2)



image (1)

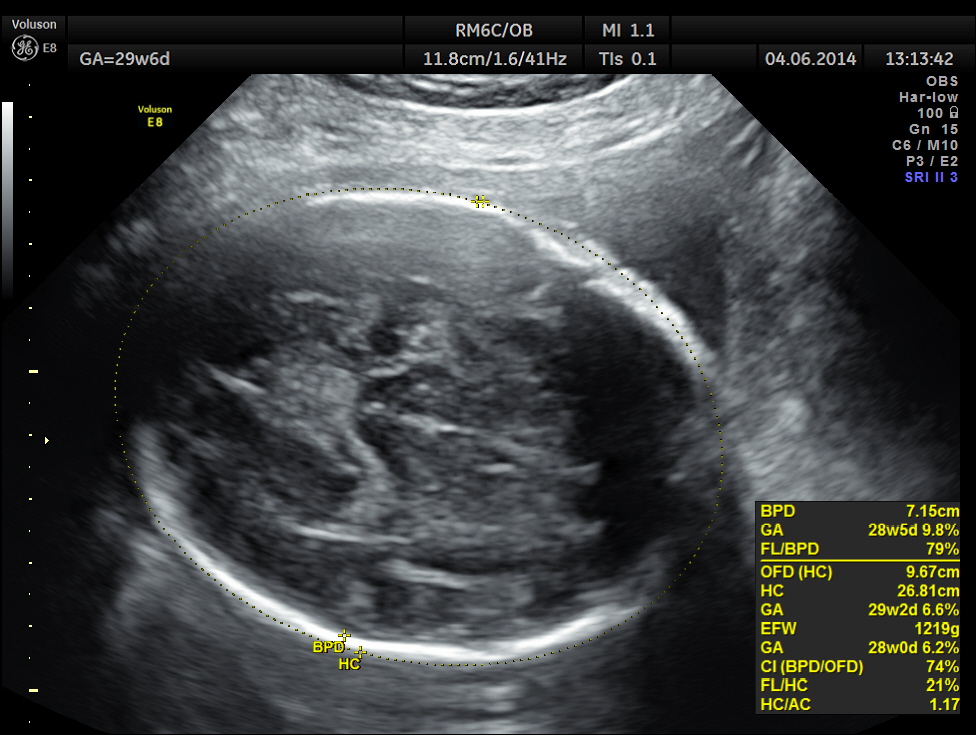

BPD , HC <10 % tile  and AC is < 2.3 % tile  .

AFI is normal .

But the doppler  values are abnormal. Umbilical artery  P.I. and R.I  are > 95 % tile . MCA   P.I. and R.I are lower .

The cerebroplacental ratio ( MCA/UA ratio ) is abnormally low -0.70 suggestive of  utero placental insufficiency.

This patient was referred by her obstetrician to an institution for further management.

The following references might be of help.

Pulsatility index of the middle cerebral artery in normal fetuses –

http://www.ncbi.nlm.nih.gov/pubmed/21213492

The MCA PI decreased as gestational age advanced from 1.97 (SD 0.48) at 20 weeks to 1.15 (SD 0.18) at 37 weeks.

Fetal middle cerebral to uterine artery pulsatility index ratios in normal and pre-eclamptic pregnancies.

http://www.ncbi.nlm.nih.gov/pubmed/17029308

Normal MCA/uterine artery PI ratios decreased with advancing gestational age. Redistribution of the fetal circulation indicated by a low MCA/uterine artery PI ratio was seen in 30% of the mild (n=15) and 46% of the severe (n=30) pre-eclamptic cases. There was a significant difference between those without and those with signs of brain-sparing, respectively, in mean birth weight (2456.0 vs. 1424.5 g), gestational age at delivery (35.6 vs. 31.3 weeks) and gestational age at the time of examination (34.9 vs. 30.9 weeks). Furthermore, there was a significantly higher rate of small-for-gestational-age (SGA) neonates (57.8% vs. 25.7%), preterm delivery (100% vs. 81.8%) and Cesarean section (90.7% vs. 66.7%) in cases with an MCA/uterine artery PI ratio below the 5th percentile.

Changes observed in Doppler studies of the fetal circulation in pregnancies complicated by pre-eclampsia or the delivery of a small-for-gestational-age baby. I. Cross-sectional analysis.

 Fetal Doppler indices, in particular ratios that include measurements obtained from the cerebral circulation, help in the recognition of the small fetus that is growth-retarded. At term, evidence of fetal hemodynamic redistribution may exist in the presence of a normal umbilical artery PI. Fetal Doppler indices provide information that is not readily obtained from more conventional tests of fetal well-being.
