PVD -PERIPHERAL VASCULAR DISEASE


This was a 55-year-old gentleman , a known case of  T2DM , Systemic Hypertension, Coronary arterial heart disease with history of C.A.B.G. 5 years ago. He also had a congenital disease of hip joints and used to walk with a slight limp. He was getting pain in  both thigh regions , more on the right side , over the past 6 months. His pain increased on walking . He consulted his orthopaedic surgeon , who told him that after appropriate investigations he might need surgical correction for his long-standing hip disease. Of late his pain was increasing even with mild exertion and was extending to the legs also. As I had known him for a long time he came to me for a second opinion . I felt his symptoms were due to a vascular insufficiency and advised him a doppler study of the lower limb arteries.

The following pictures were obtained .

Rt common femoral artery showed monophasic flow

Rt common femoral artery showed monophasic flow



PVD_2



PVD_3

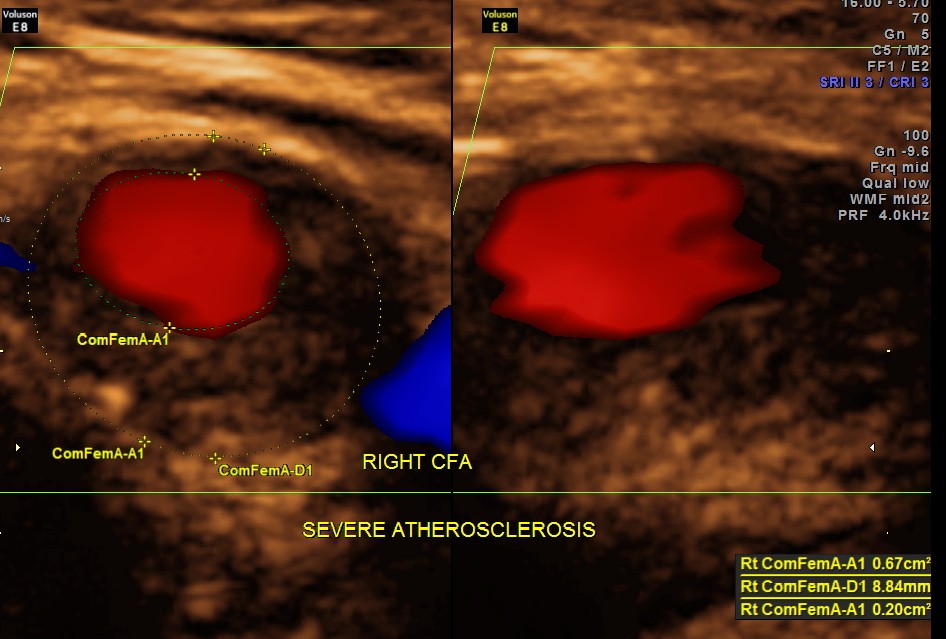

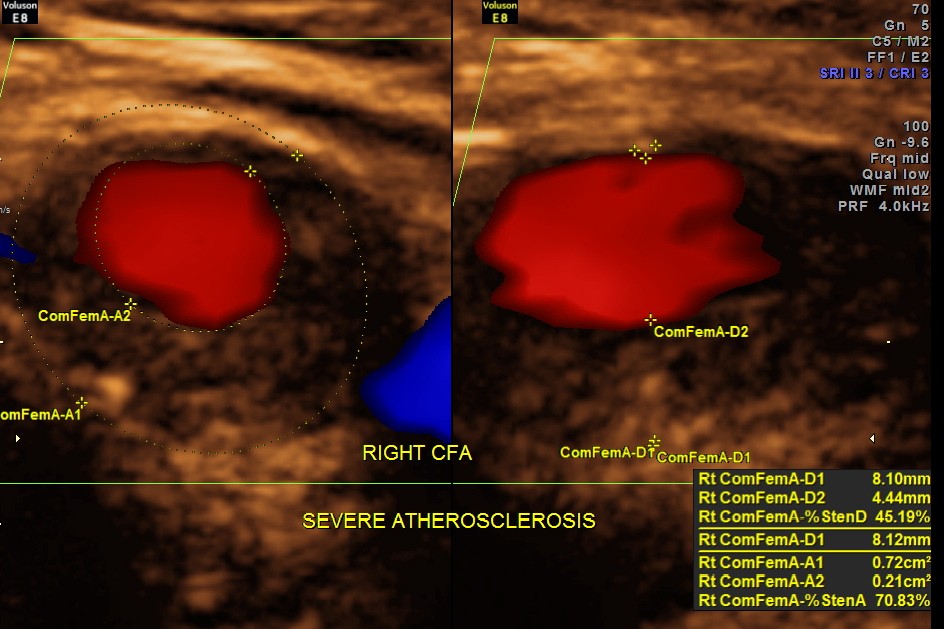

Rt Common Femoral artery showed  nearly 70 % obstruction.

PVD_4





RT SUPERFICIAL FEMORAL ARTERY SHOWS MONOPHASIC FLOW

RT SUPERFICIAL FEMORAL ARTERY SHOWS MONOPHASIC FLOW

PVD_6



PVD_7



PVD_8

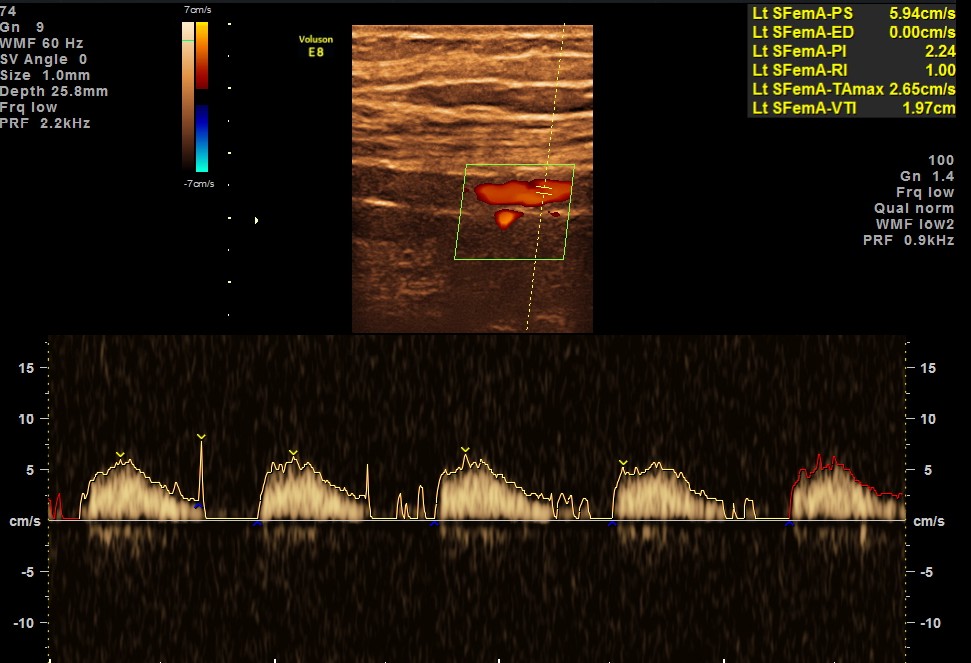

LEFT SUPERFICIAL FEMORAL ARTERY SHOWS MONOPHASIC FLOW

LEFT SUPERFICIAL FEMORAL ARTERY SHOWS MONOPHASIC FLOW

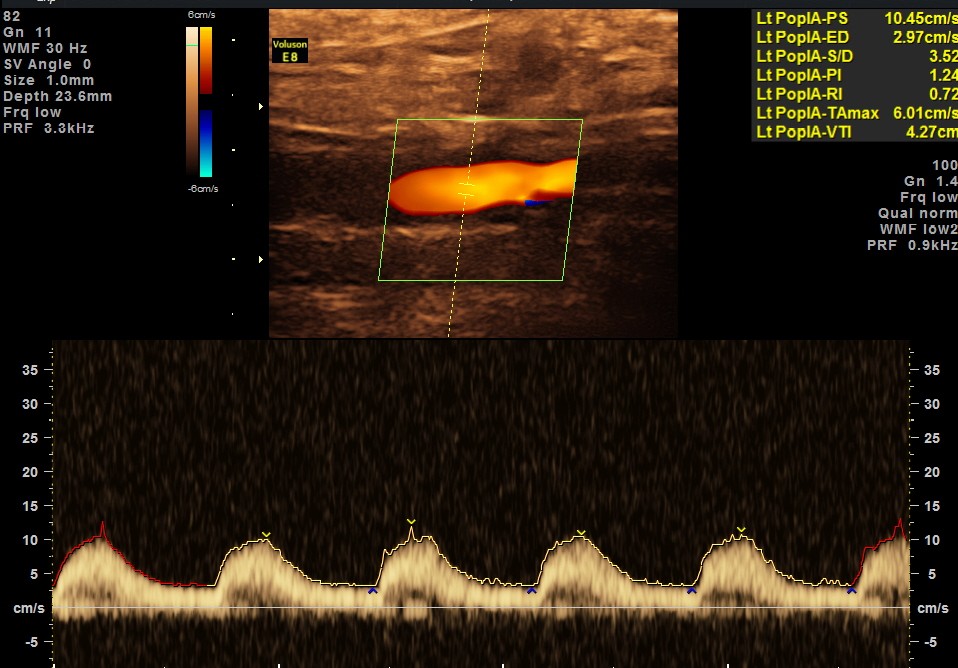

LEFT POPILITEAL ARTERY SHOWS MONOPHASIC FLOW

LEFT POPILITEAL ARTERY SHOWS MONOPHASIC FLOW

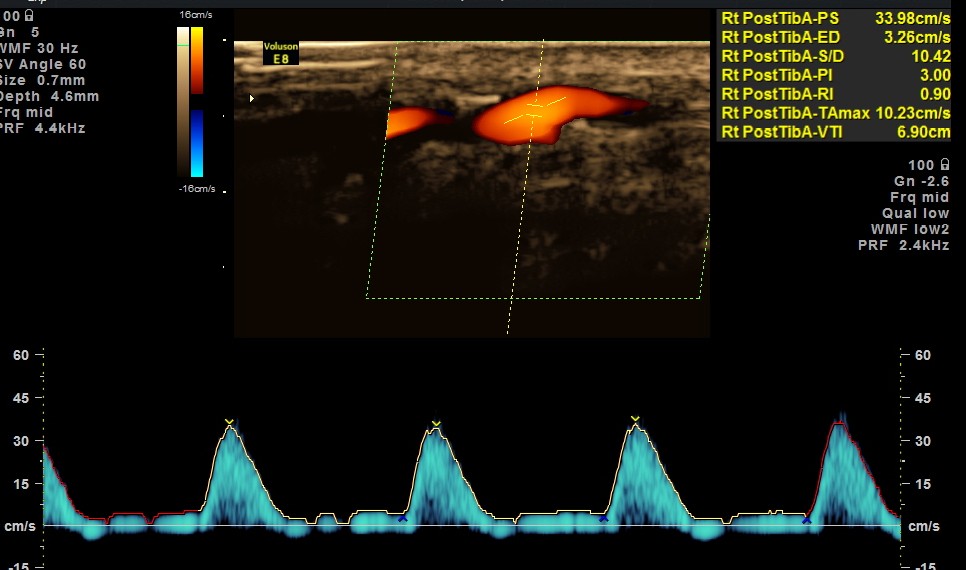

RIGHT POSTERIOR TIBIAL ARTERY SHOWS MONOPHASIC FLOW

RIGHT POSTERIOR TIBIAL ARTERY SHOWS MONOPHASIC FLOW

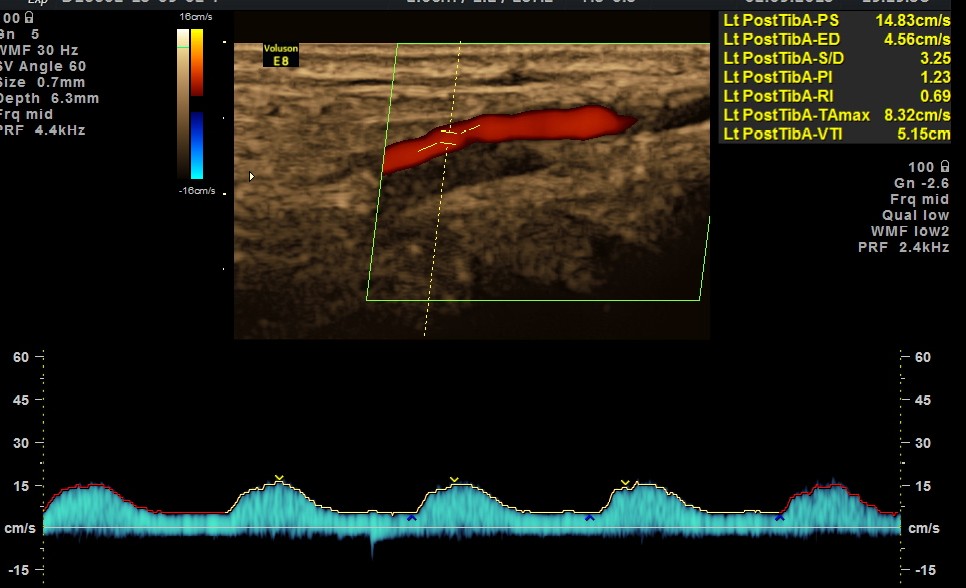

LEFT POSTERIOR TIBIAL ARTERY SHOWS MONOPHASIC FLOW

LEFT POSTERIOR TIBIAL ARTERY SHOWS MONOPHASIC FLOW

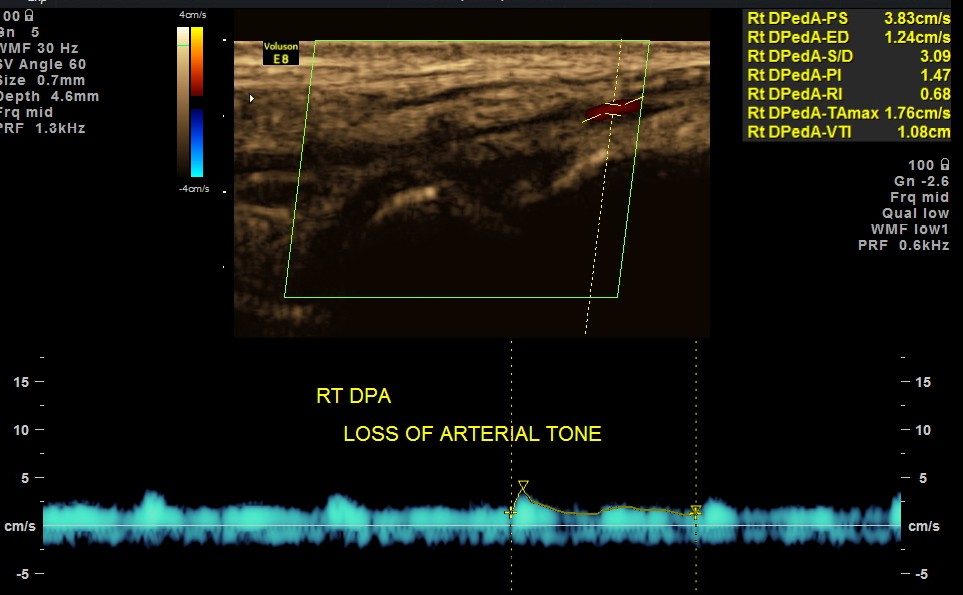

BOTH DORSALIS PEDIS ARTERIES SHOW LOSS  OF ARTERIAL TONE AND MONOPHASIC FLOW.

PVD_16





BOTH COMMON ILIAC ARTERIES AND EXTERNAL ILIAC ARTERIES SHOWED TRIPHASIC FLOW.

EXTENSIVE ATHEROSCLEROTIC OBSTRUCTIVE DISEASE OF THE LOWER LIMB ARTERIES WAS SEEN WITH THE CHANGES IN THE RIGHT COMMON FEMORAL ARTERY BEING MORE THAN THE LEFT CFA.

A vascular surgeon’s consultation was sought . Subsequently PTA ( percutaneous transluminal angioplasty ) with stent was done at the common femoral level and superficial femoral level on both sides. The patient is doing well subsequently.

reference :

Ultrasonography in Vascular Diagnosis: A Therapy-Oriented Textbook and Atlas (Google eBook). Front Cover. B. Herwig, Wilhelm Schäberle. Springer,

www.­worldwidewounds.­com/­2000/­sept/­Michael-­Lunt/­Doppler-­Imaging.­html
