UNUSUAL PRESENTATION OF A REGULATION FINDING


A 45 year old lady with history of hysterectomy and bilateral salpingho oophorectomy, presented to her gynaecologist for symptoms of lower urinary tract – dysuria and frequency.

She was sent for a routine evaluation of the abdomen and pelvis.

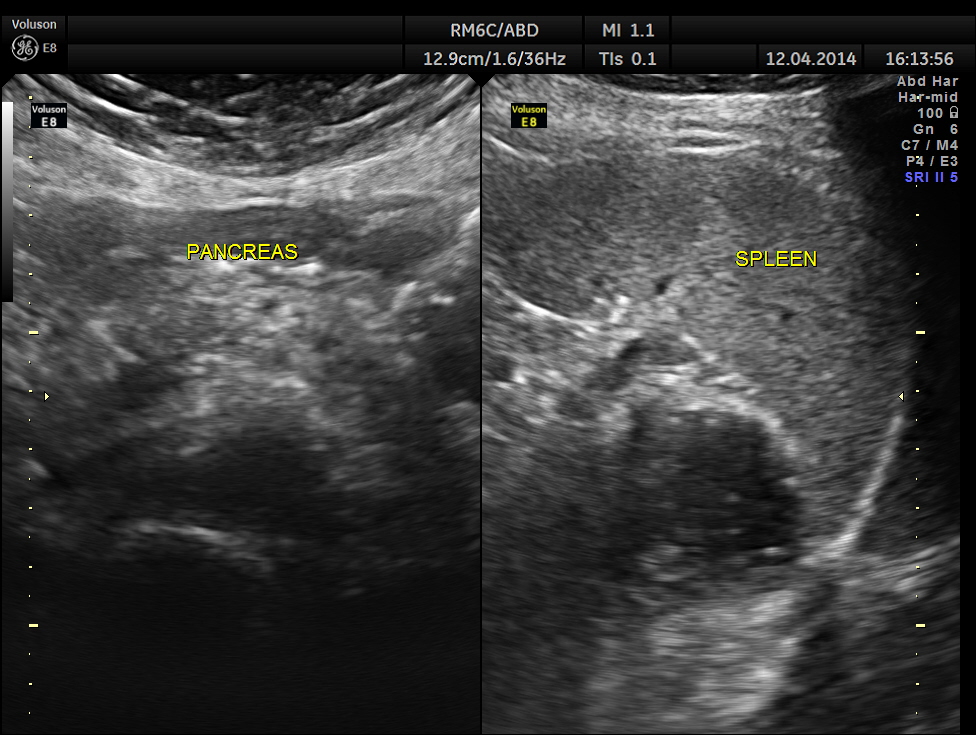

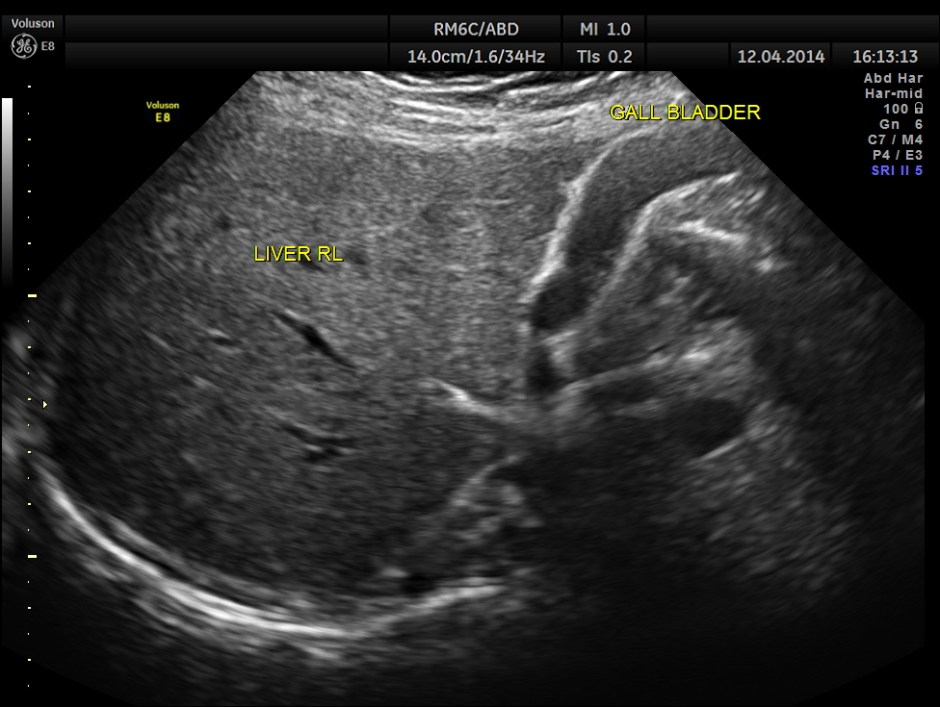

The following pictures show a normal liver, gall bladder, pancreas and spleen .

KID  DISTAL UR CALCULUS_2 KID  DISTAL UR CALCULUS_1



Both the kidneys appeared to be normal . No calculus was seen . There was no evidence of any obstruction.

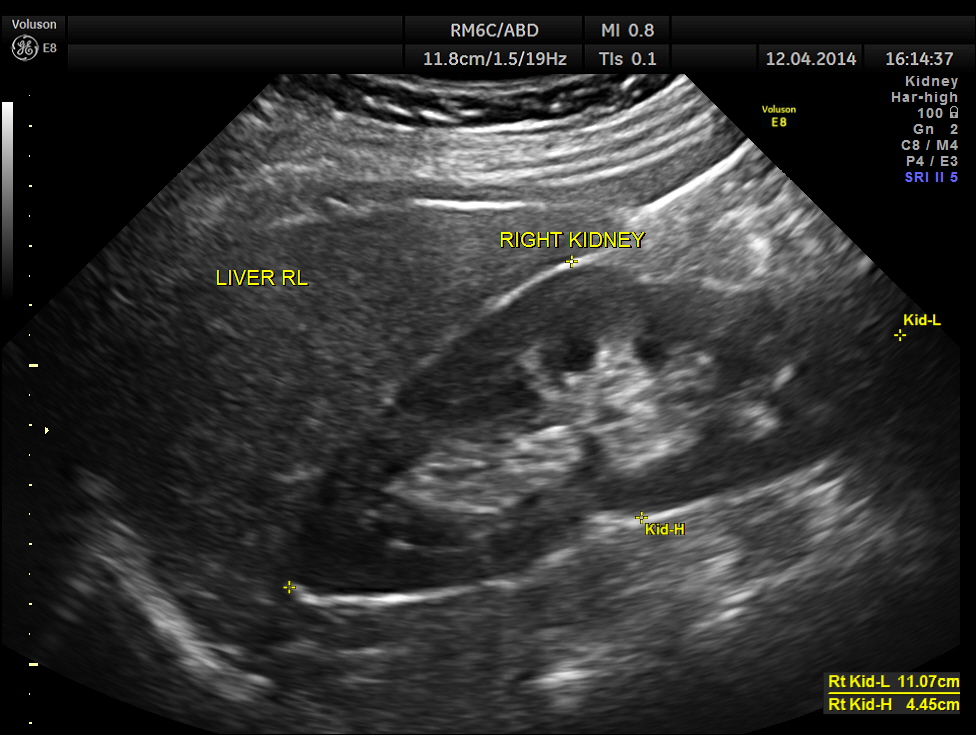

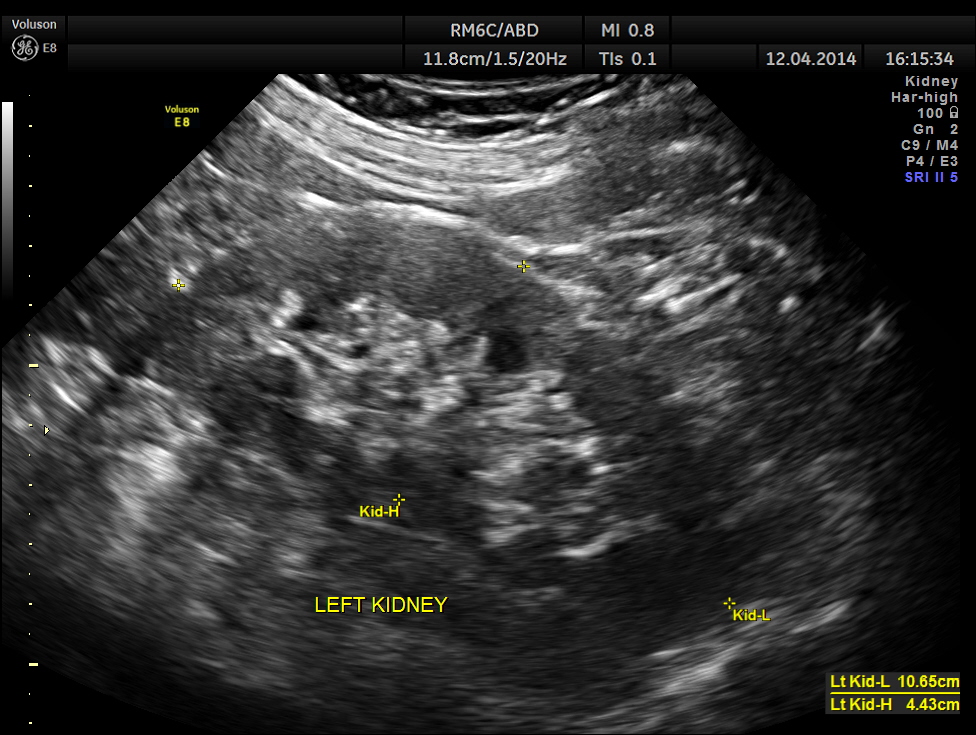

KID  DISTAL UR CALCULUS_3 KID  DISTAL UR CALCULUS_4

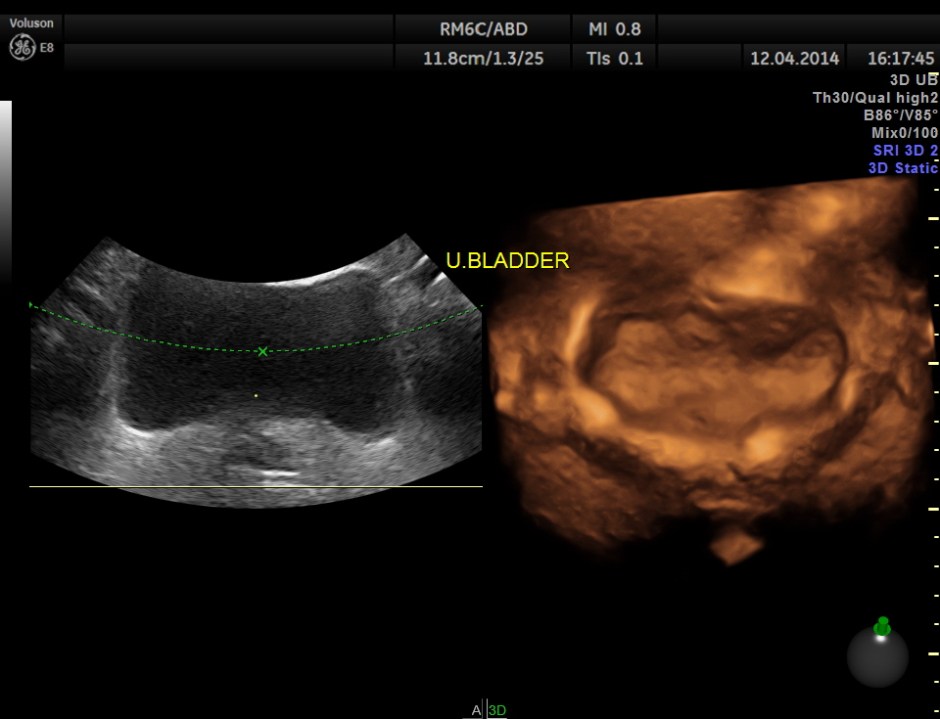

Urinary bladder wall was mildly thickened . 3D showed fairly normal bladder mucosa . Ureteric jets were seen normally.

The distal ureters were not visualised .

KID  DISTAL UR CALCULUS_5 KID  DISTAL UR CALCULUS_6

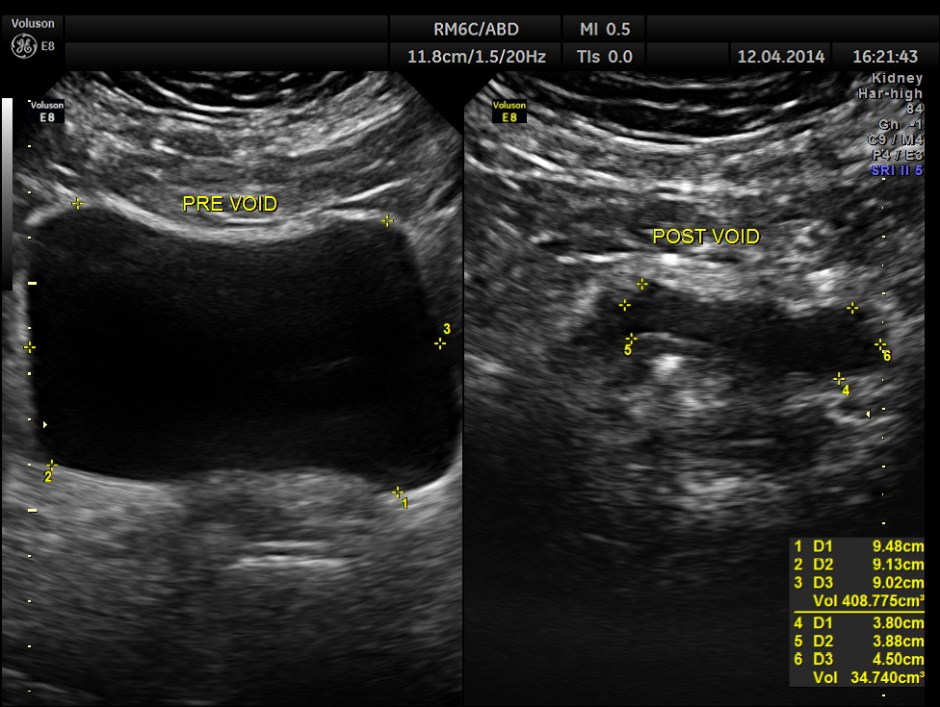

Post void bladder was studied  and showed the following .



KID  DISTAL UR CALCULUS_7

Lo and behold – a distal right ureteric calculus is clearly seen now .

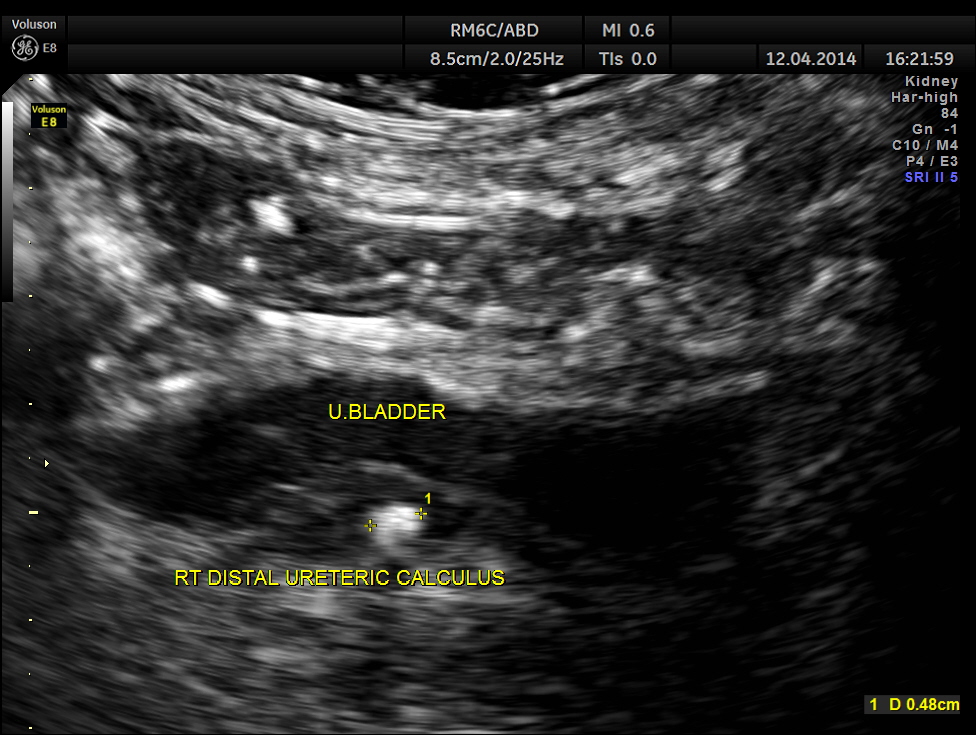

KID  DISTAL UR CALCULUS_8

Usually  we pick up all ureteric calculi and distal ureteric pathologies with a full bladder . Usually distal ureteric calculus will cause some amount of obstructive features in the ureter and the kidney . That was also absent in this patient .

But occasionally like this patient  , the distal ureters can be compressed with a full bladder and such findings  could be missed unless we do a post void study, especially when they have a LUTS symptoms . In this patient the bladder wall also showed mild thickening.
