Tetralogy Of Fallot ( TOF )


This was a review scan of the same patient already posted here on 31 March  2013 – Left Atrial Isomerism . The review scan threw up some surprises . I was left wondering whether I should have got it the earlier time itself .

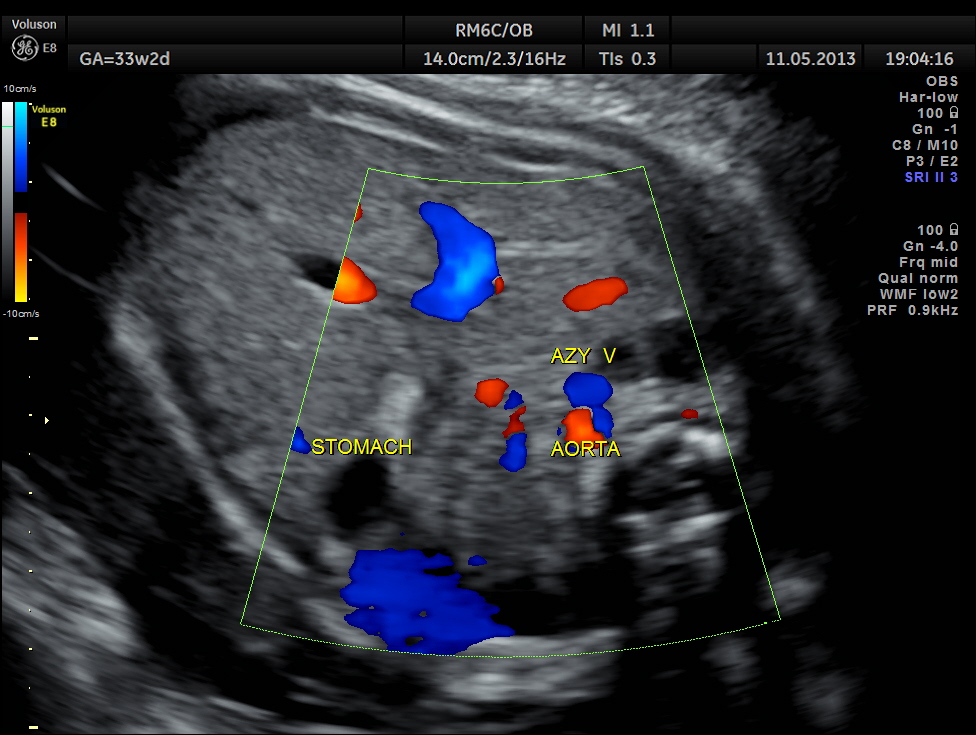

The first picture would confirm the left atrial isomerism – aorta and azygos vein seen side by side .

RUKMANI_26

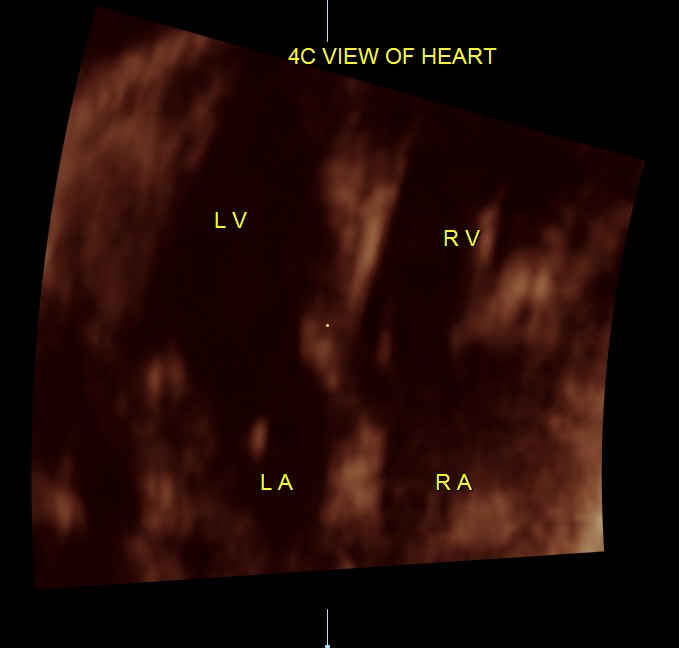

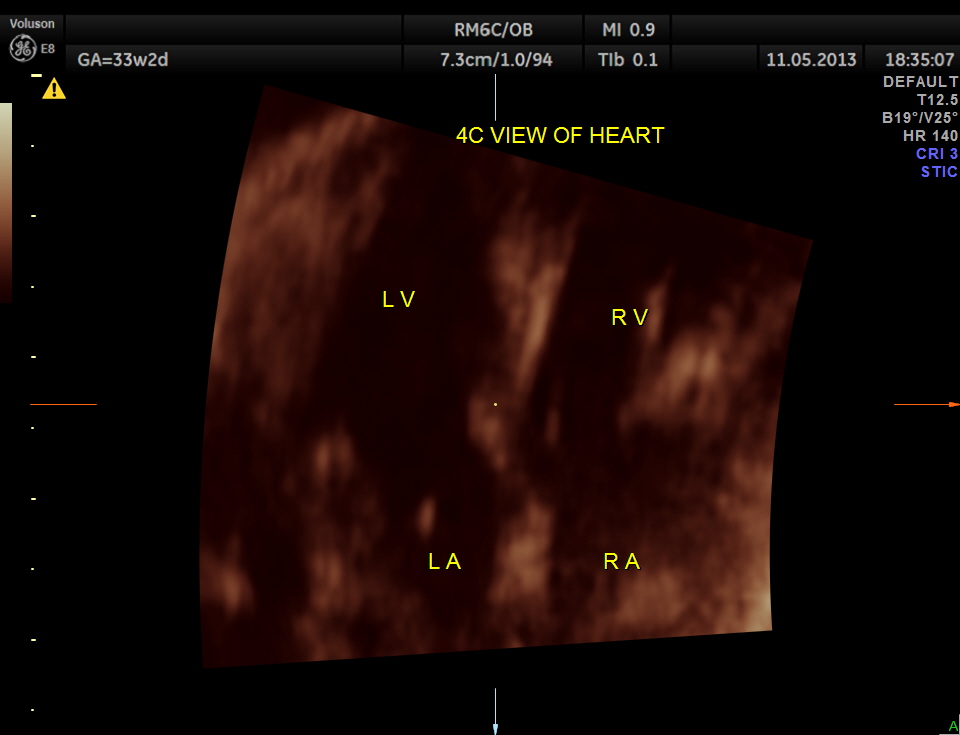

the four chamber view looked normal.

RUKMANI_6

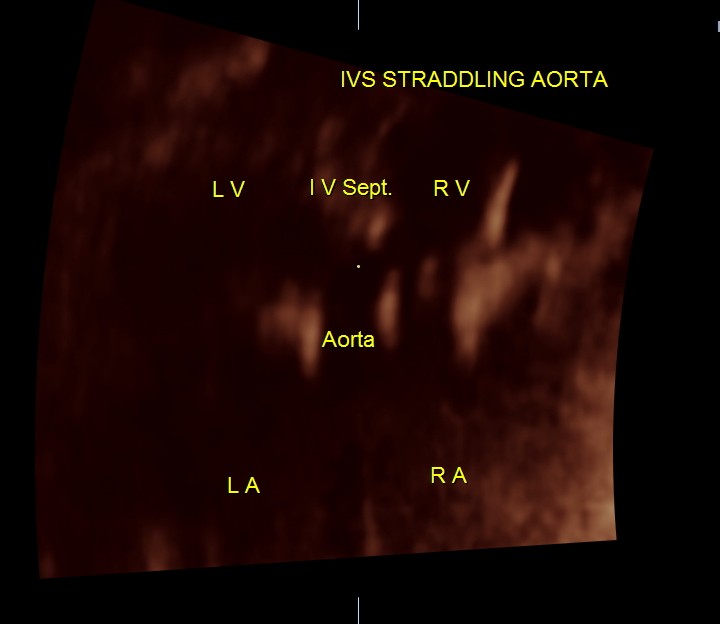

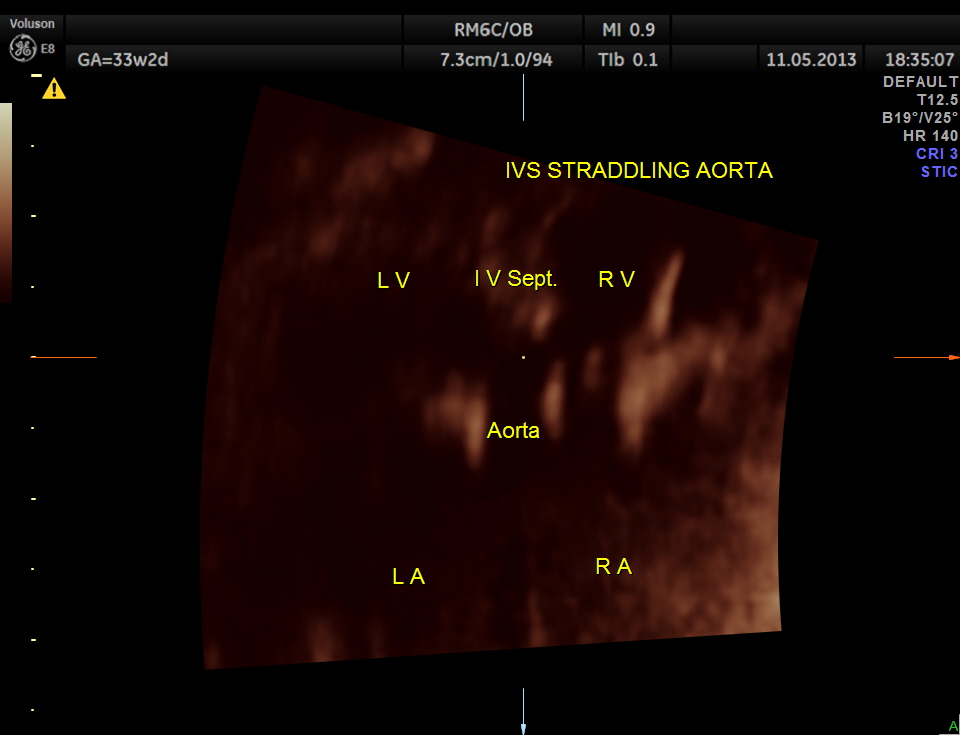

the LV Outflow tract view was more revealing . The IVS  is seen straddling the aorta .

RUKMANI_7

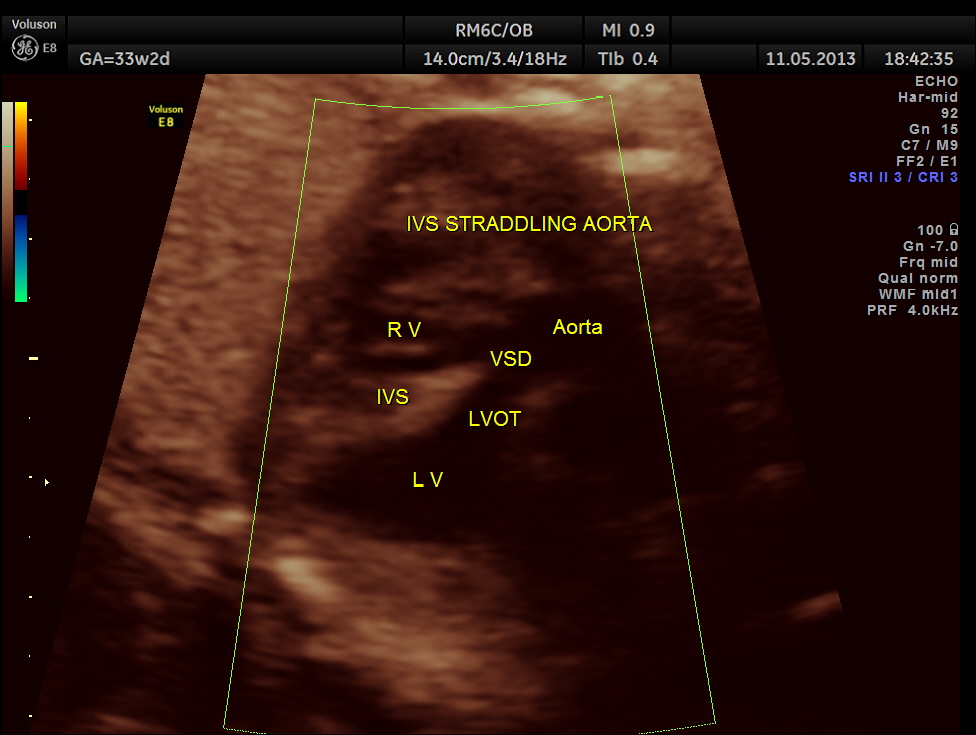

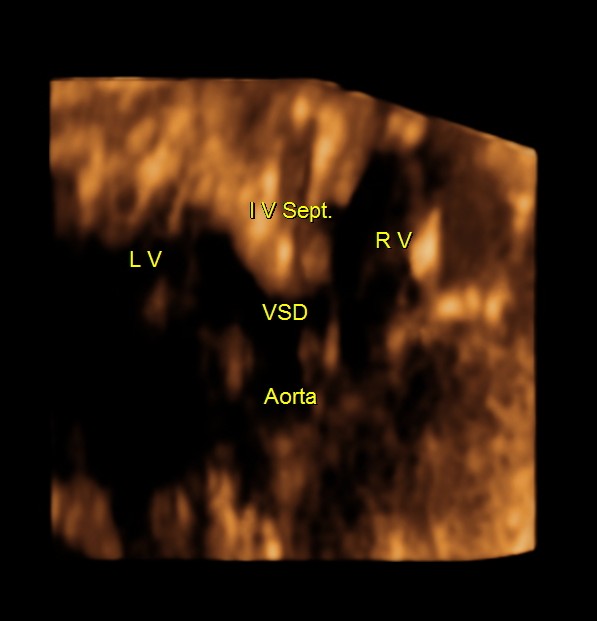

the next few pictures show the straddling of the aorta by the inter ventricular septum.

RUKMANI_18

RUKMANI_11

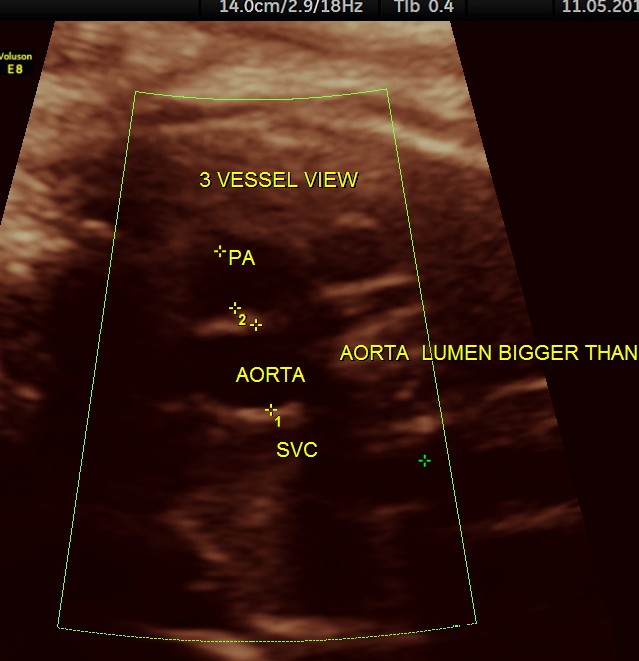

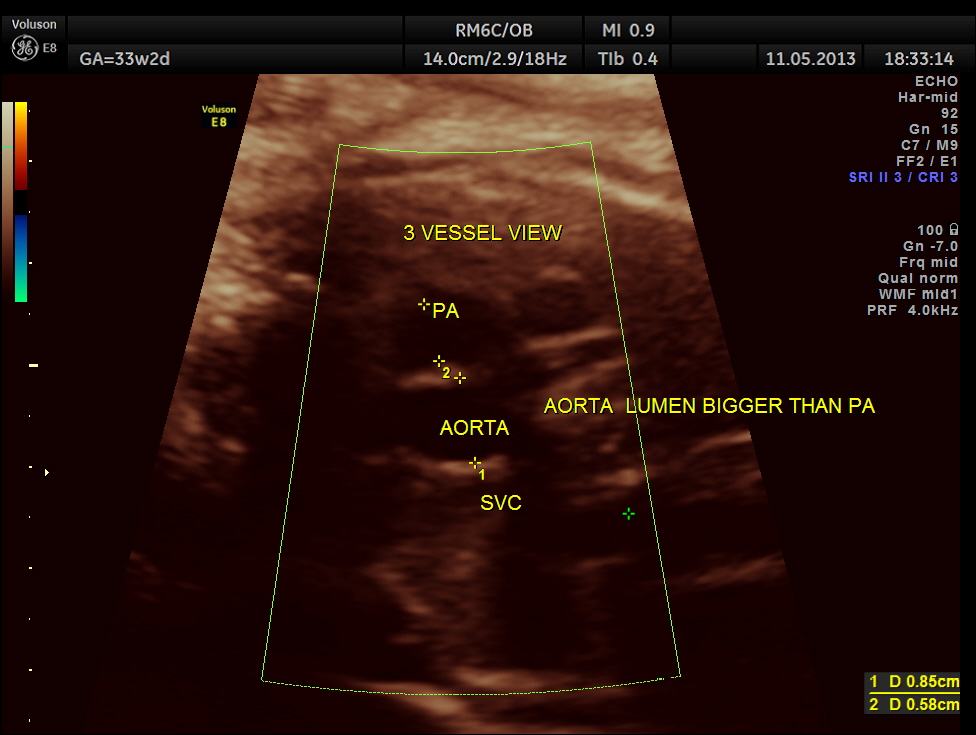

the three vessel view shows a narrow pulmonary artery compared to the aorta with flow reversal

RUKMANI_8

RUKMANI_9

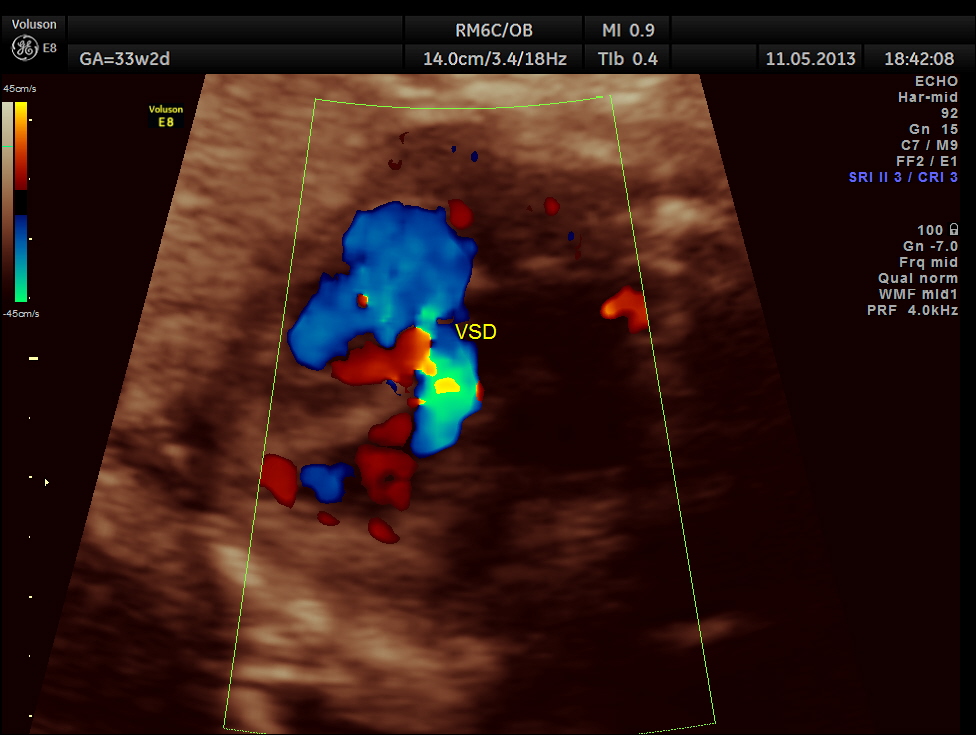

the A V Septal defect with the colour flow.

RUKMANI_10

the diagnosis would be LEFT ATRIAL ISOMERISM WITH TETRALOGY OF F ALLOT

The irregular rhythm was not made out now.

Apart from this the fetus has symmetrical IUGR  and oligohydramnios

This brings out the importance of reviewing the patient at intervals.
