Bladder calculus & Prostatomegaly – 2D & 3 D images


This was a 57 year old gentleman , with complaints of  difficulty in passing urine and dysuria of 1 month duration.

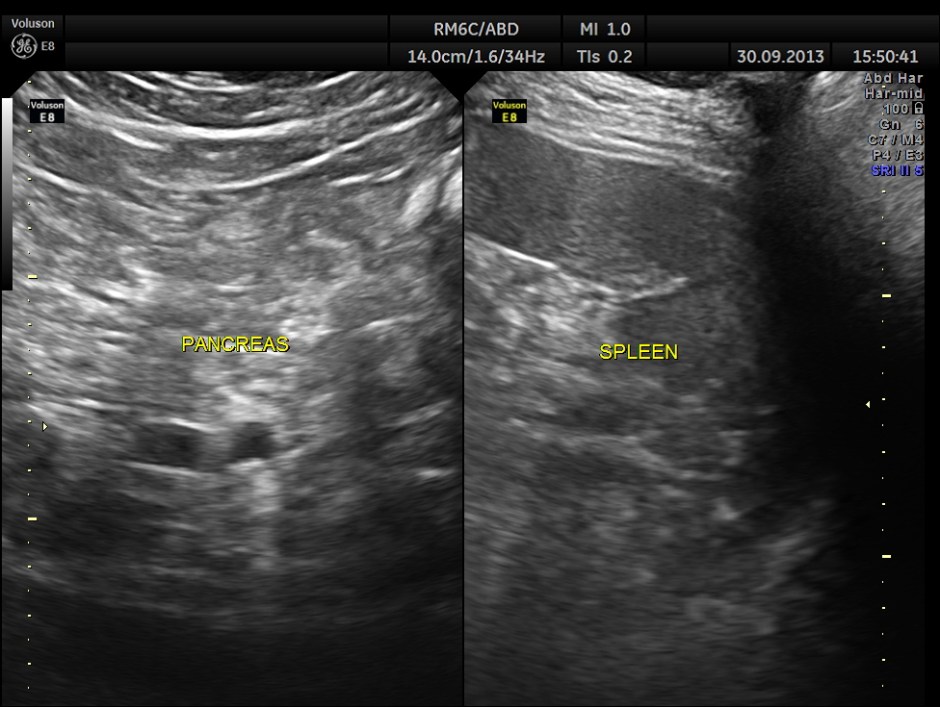

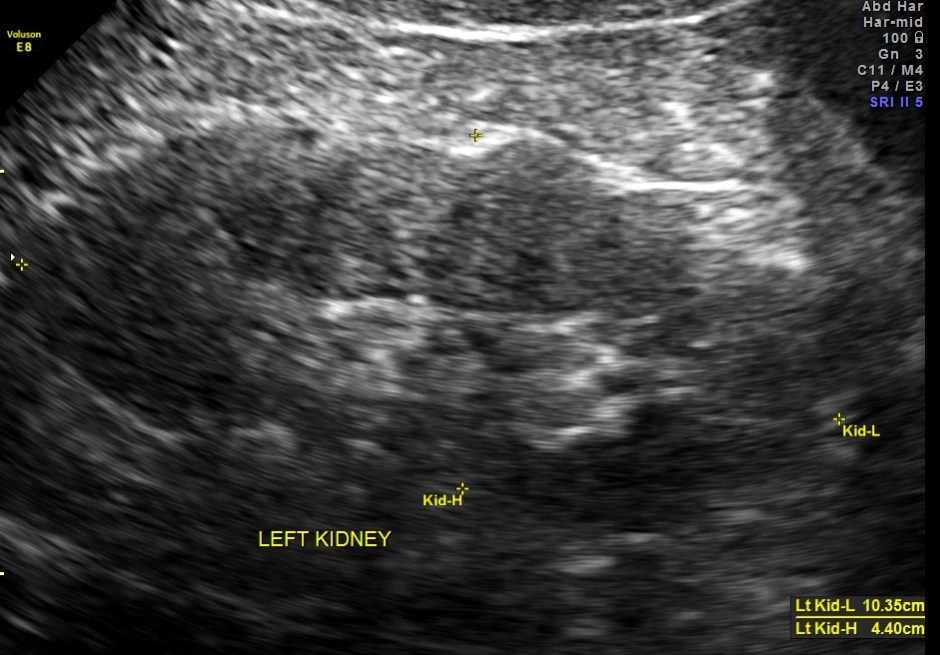

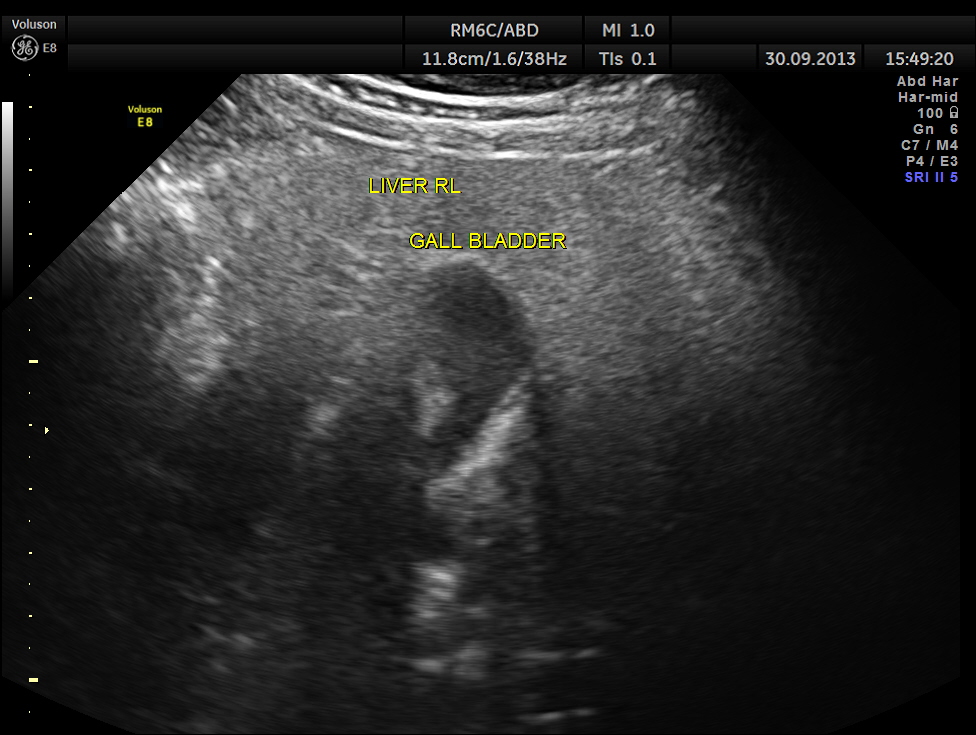

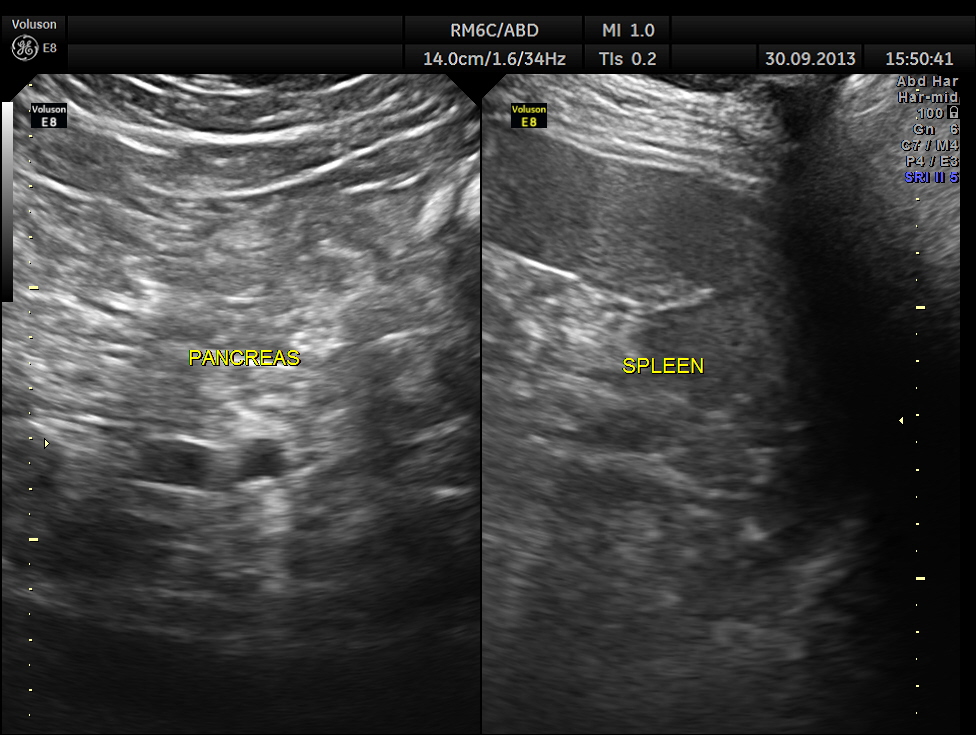

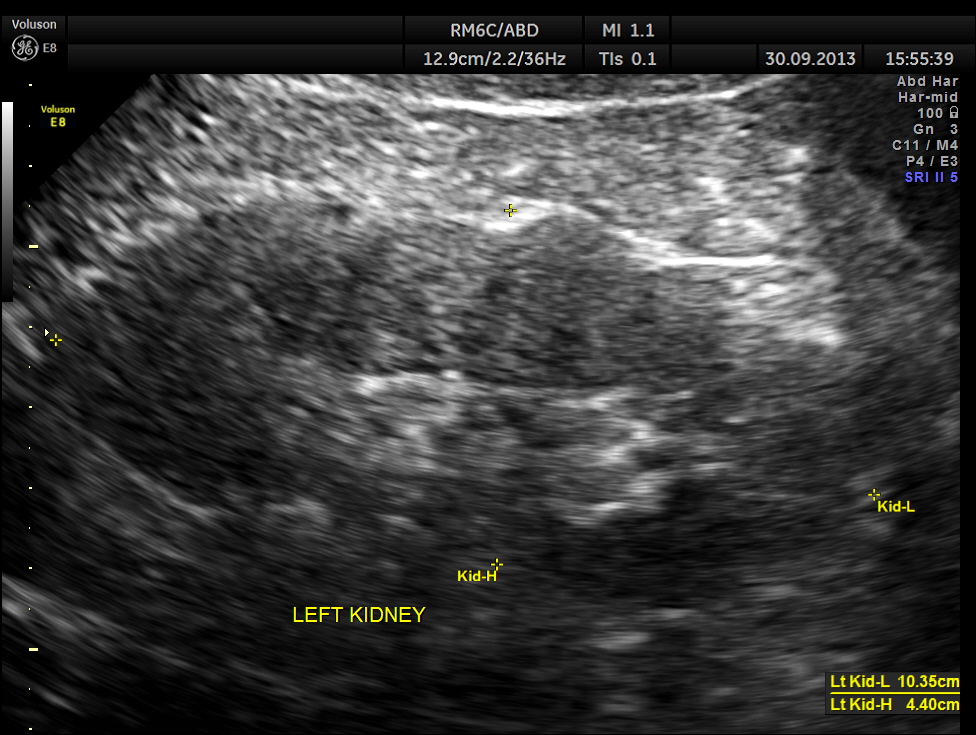

His upper abdominal scan was normal . His left kidney was normal.

BL CALCULUS BPH_1 BL CALCULUS BPH_2 BL CALCULUS BPH_5

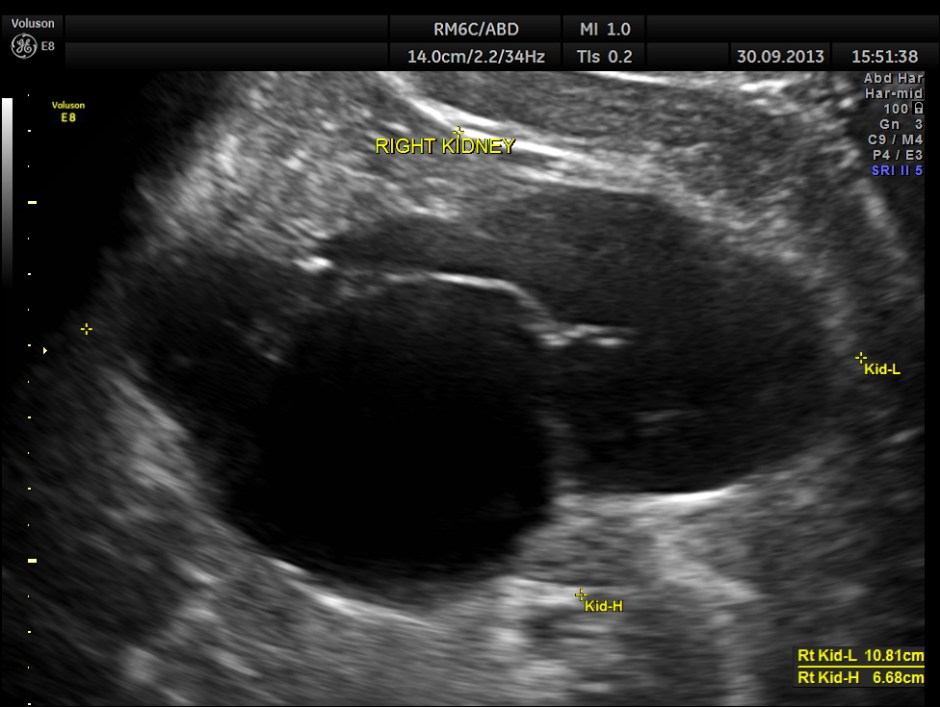

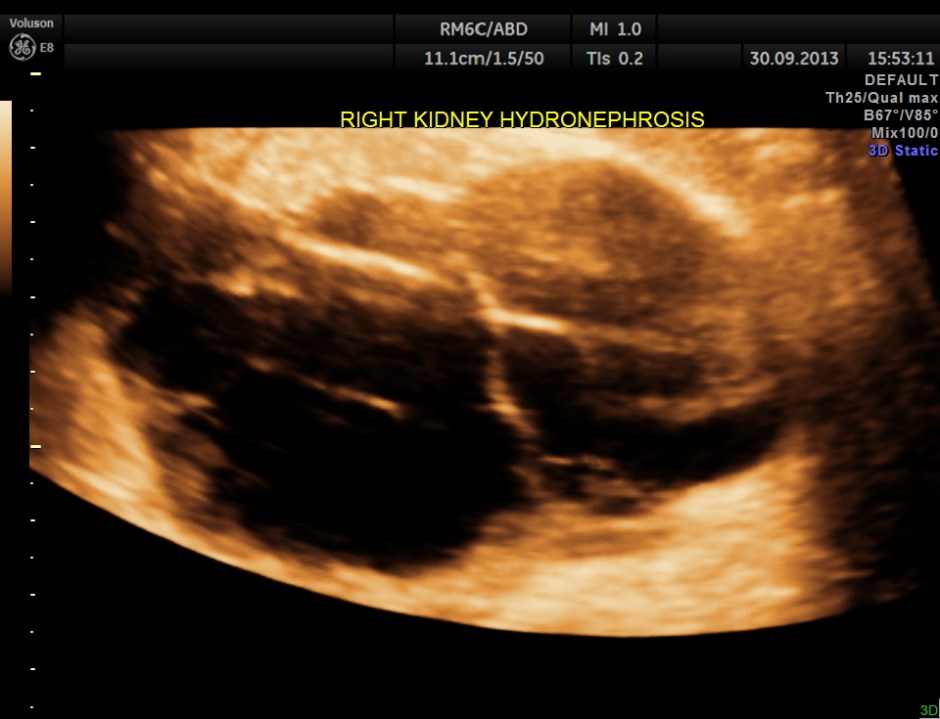

the right  kidney showed moderate to severe  hydro-nephrosis

BL CALCULUS BPH_3

BL CALCULUS BPH_4

urinary bladder showed  a large calculus and prominent swelling of the median lobe of the prostate.

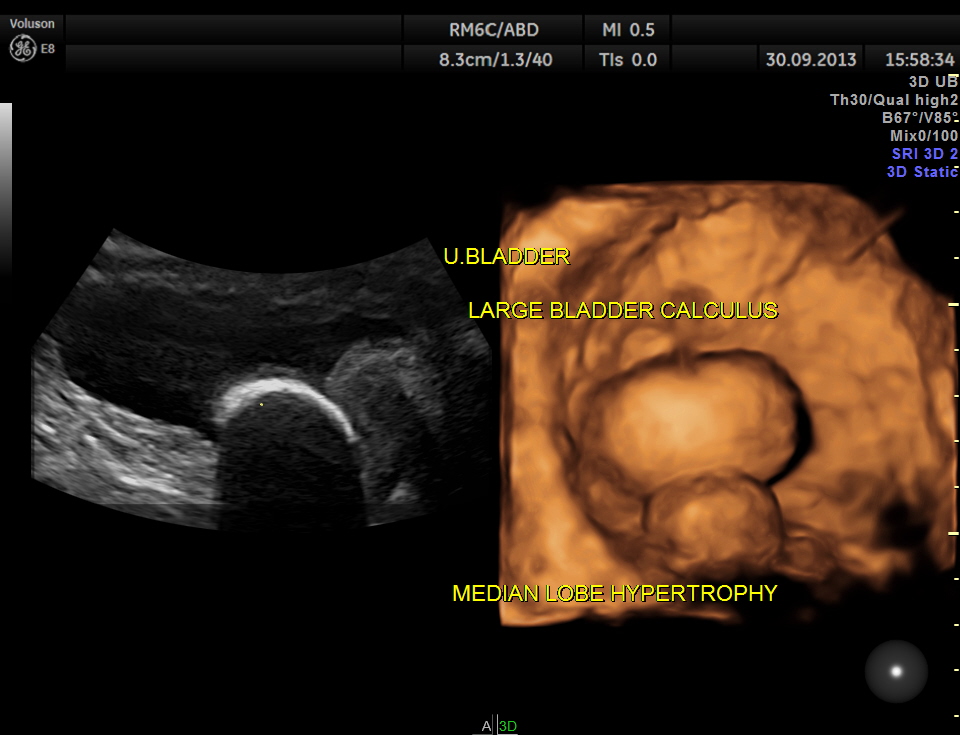

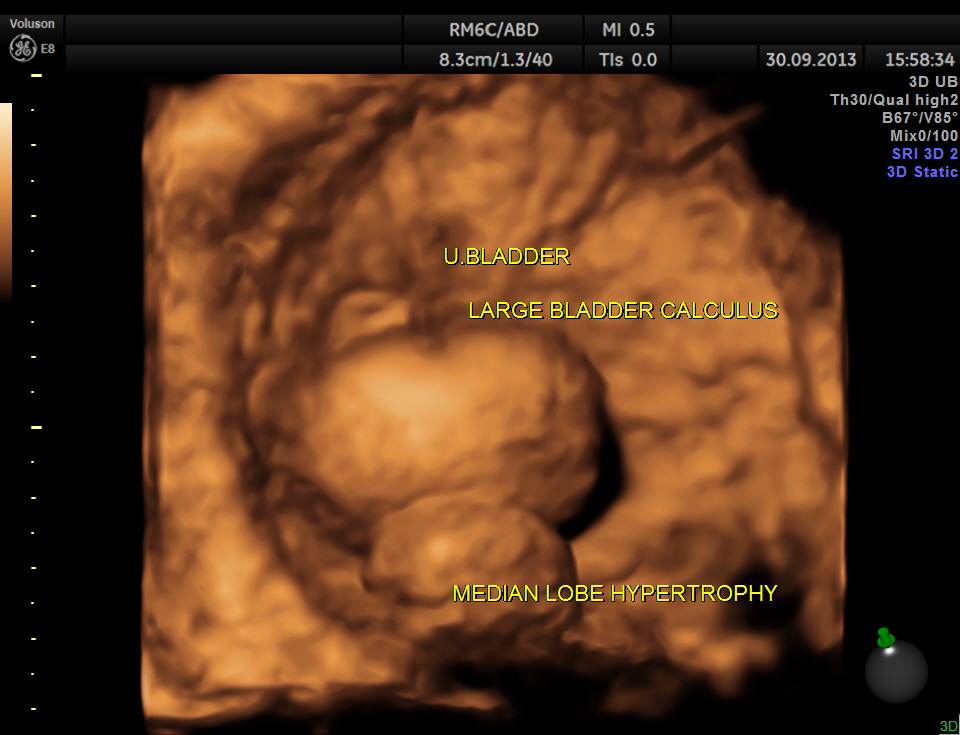

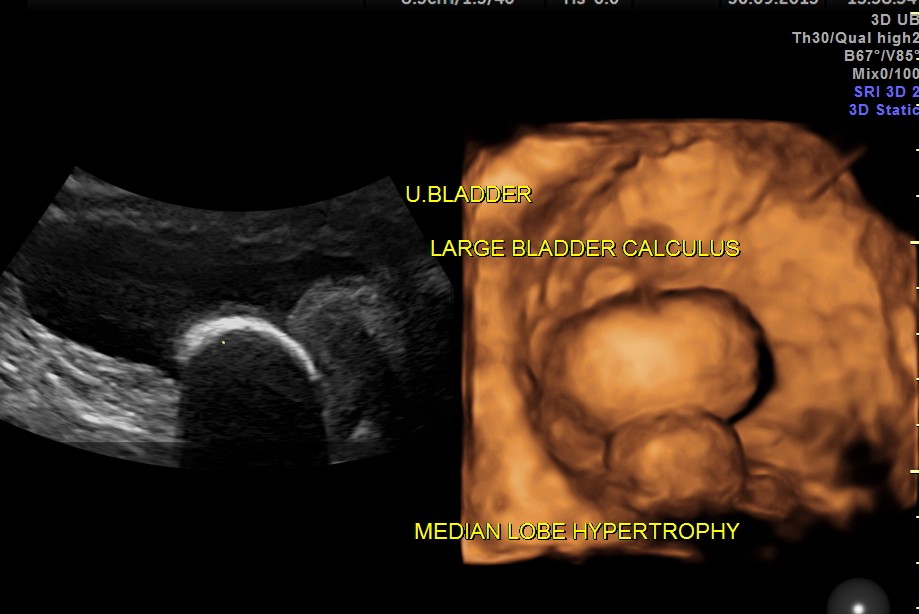

the following images show the 2 d and 3 d appearance of the same.

BL CALCULUS BPH_6 BL CALCULUS BPH_7

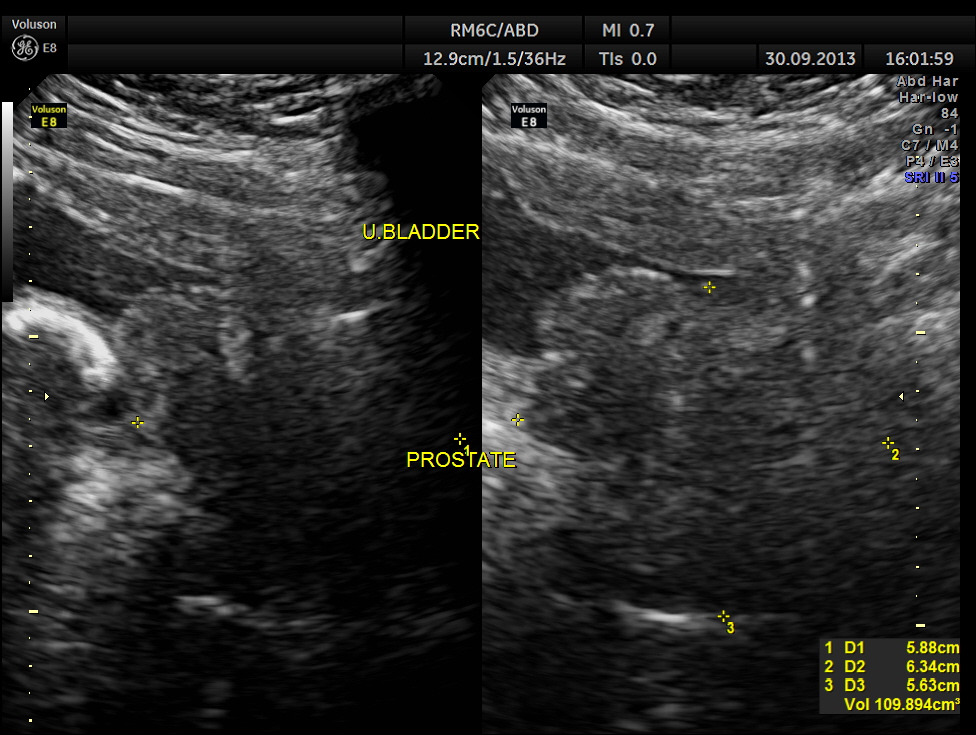

enlarged prostate and median lobe hypertrophy

BL CALCULUS BPH_8

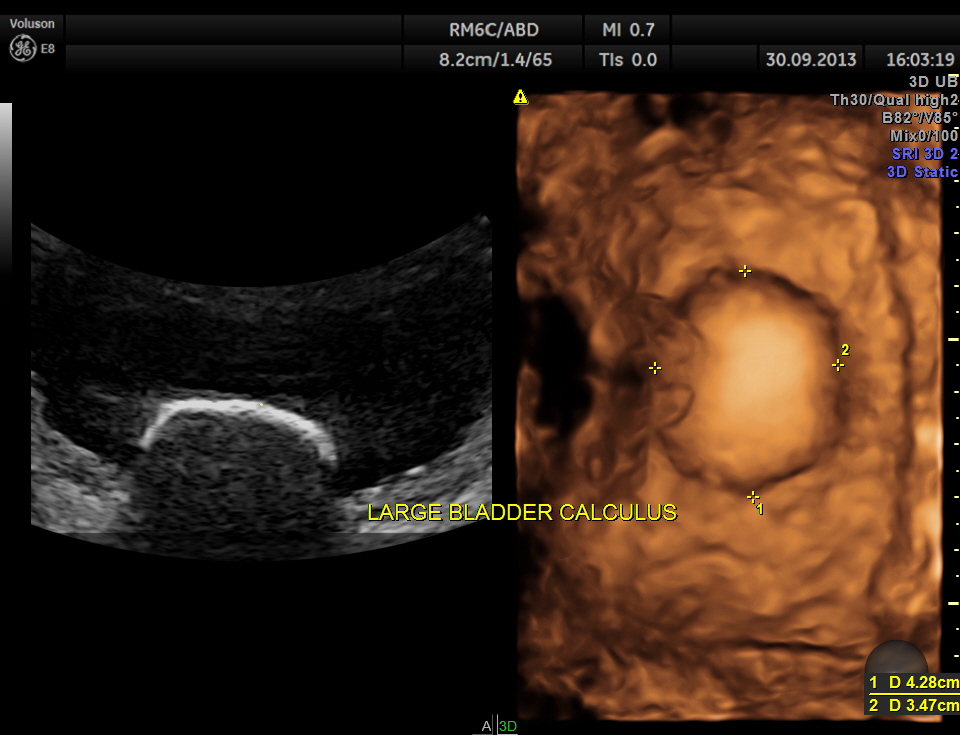

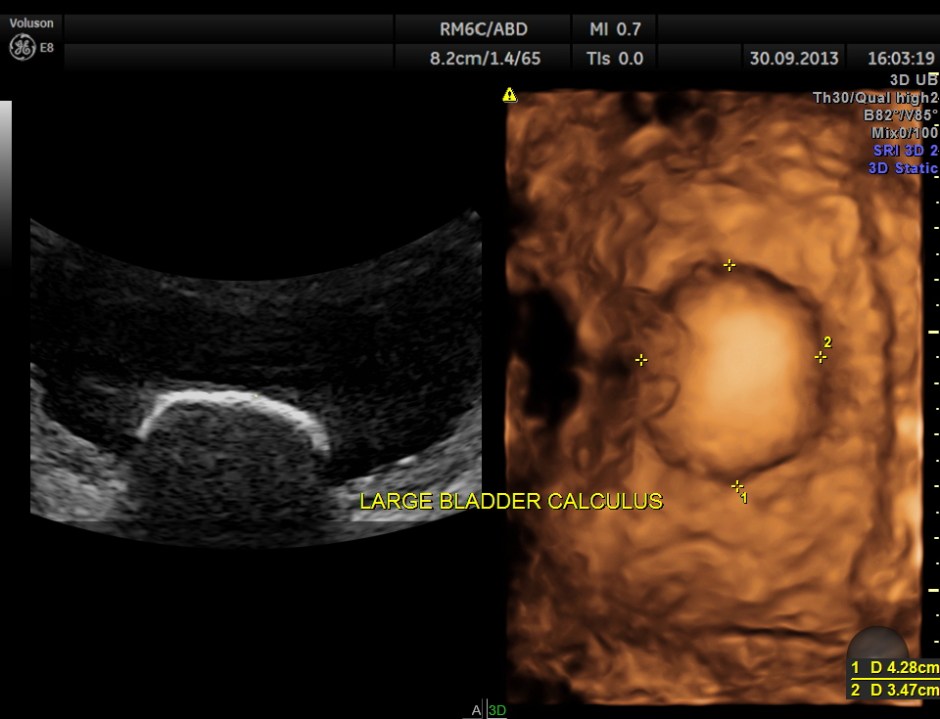

2 D and 3 D of the bladder calculus alone.

BL CALCULUS BPH_9

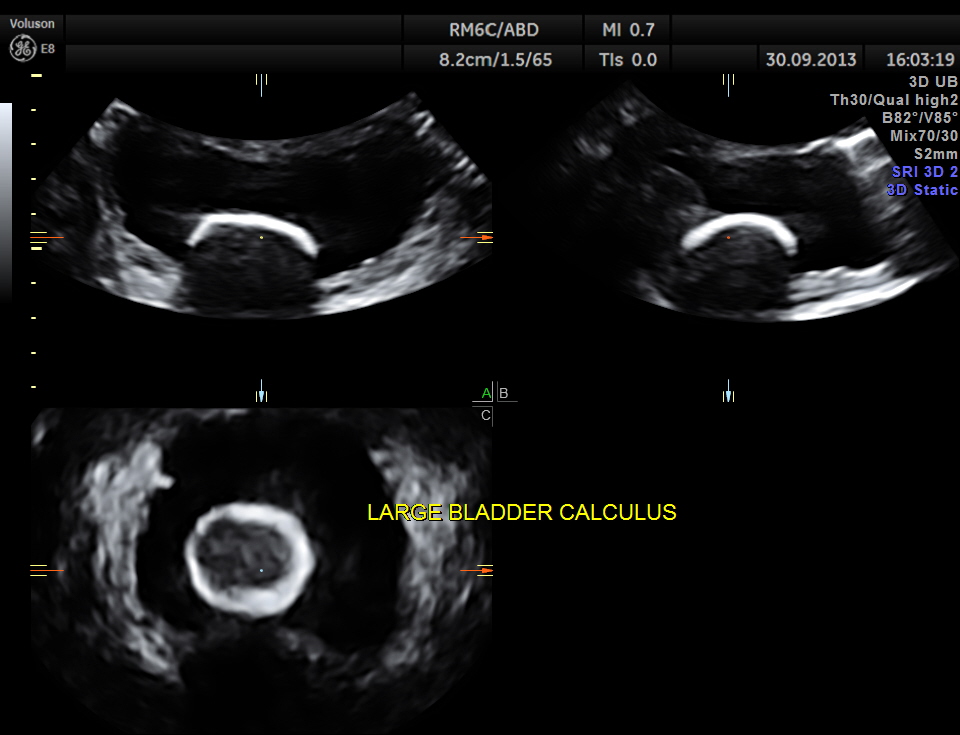

multi- planar view of the bladder calculus

BL CALCULUS BPH_10

2 D and 3 D views of the median lobe hypertrophy

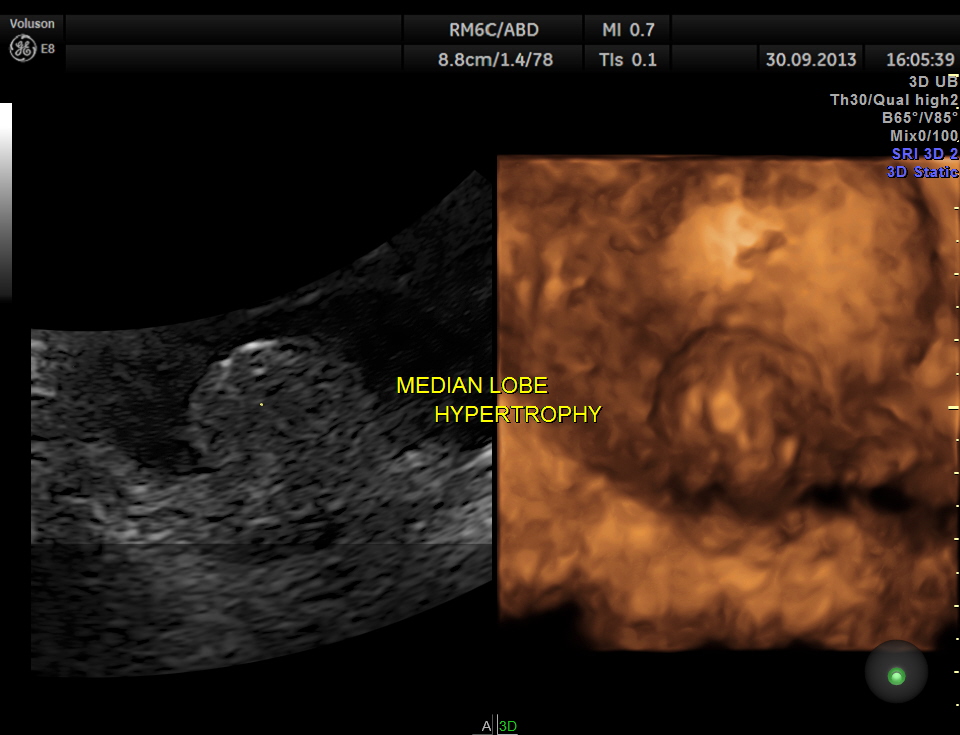

BL CALCULUS BPH_11

the  median lobe hypertrophy in 2 D

The diagnosis given was Large calculus in the urinary bladder , Severe prostatic enlargement with prominent median lobe hypertrophy , causing Right sided obstructive uropathy.

The diagnosis was  made with the  2D images , but the 3 D images were very helpful in explaining to the patient.
