HYDROCEPHALUS , OPEN NEURAL TUBE DEFECT


This was a 24 year old lady referred for 2 nd opinion for hydrocephalus.

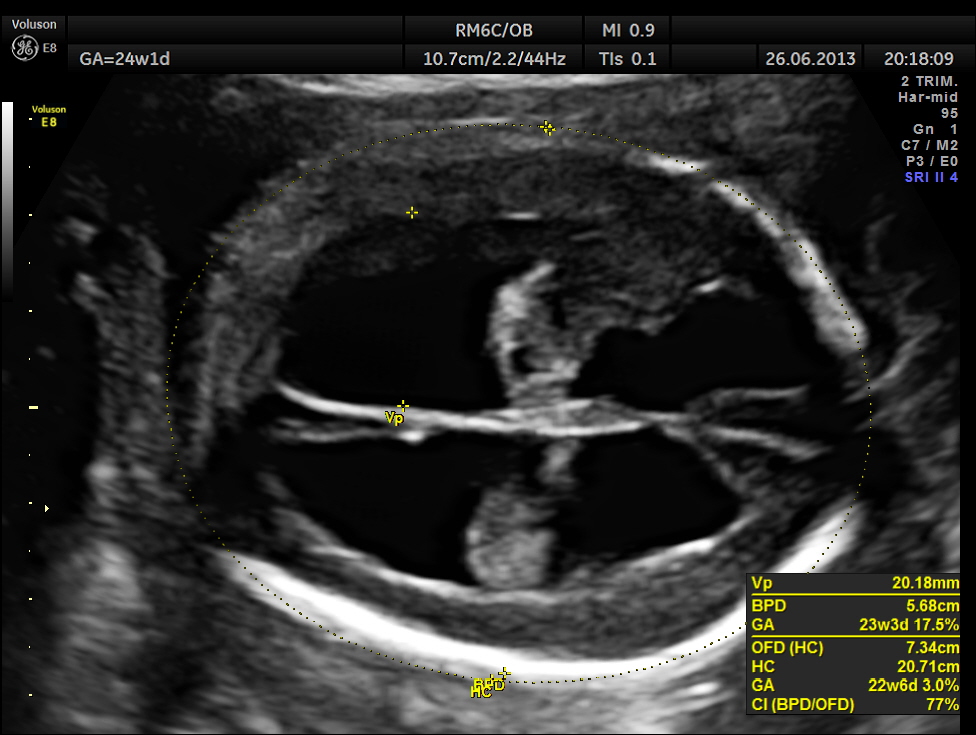

Hydrocephalus was confirmed.

OPEN NTD THORACIC_1

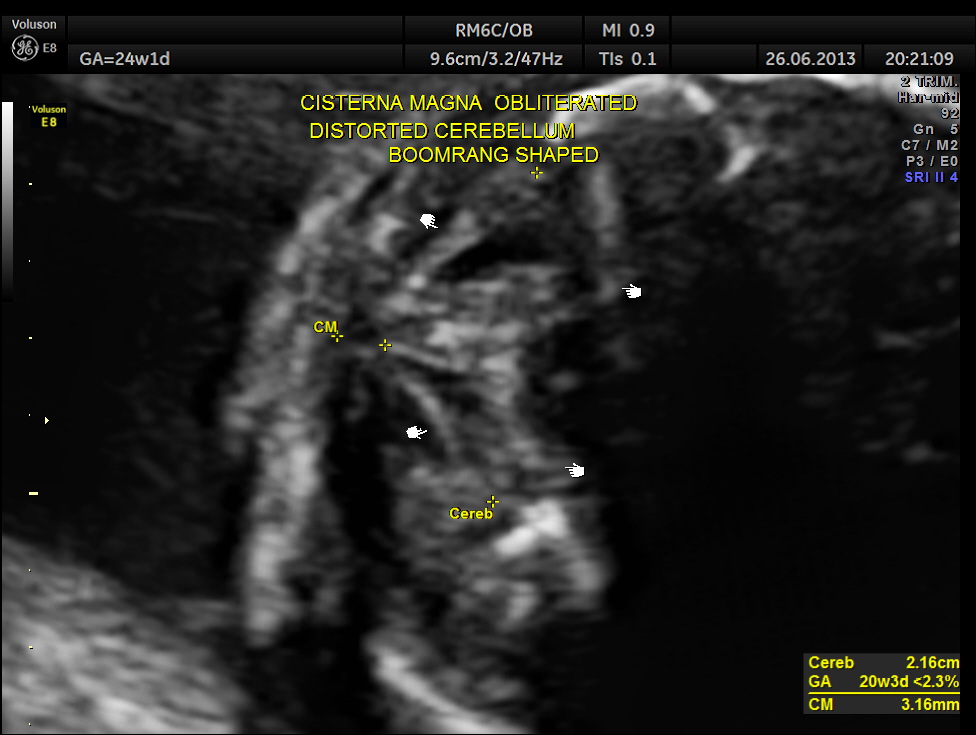

The cerebellum was distorted in shape – boomerang shaped and the cisterna magna was almost obliterated.

OPEN NTD THORACIC_2

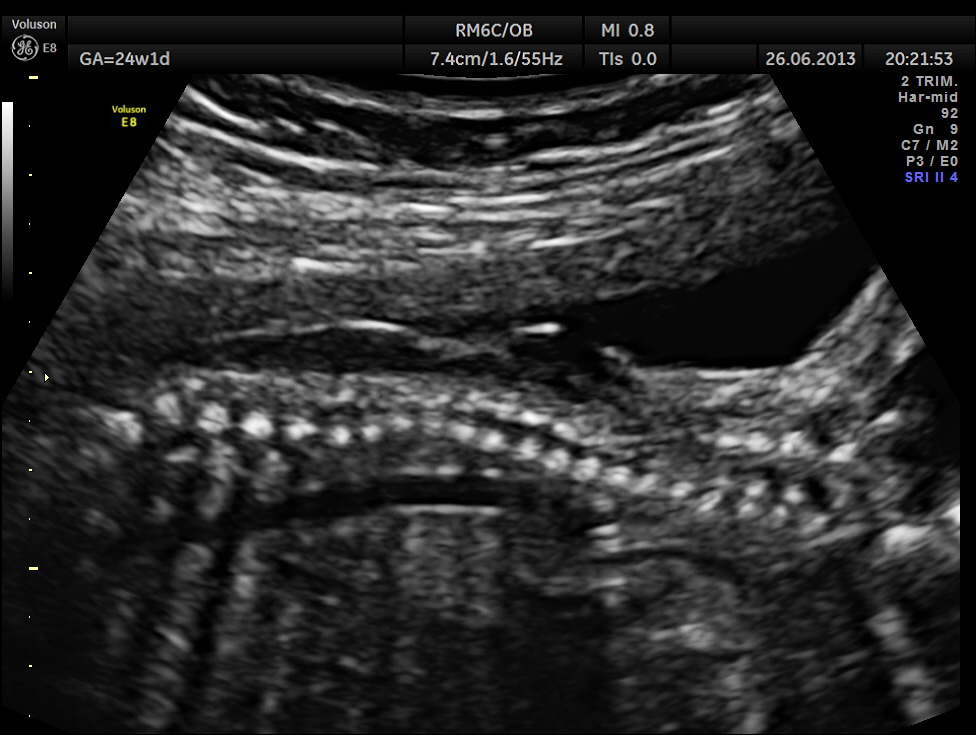

The spine was scanned next and the following images were seen

OPEN NTD THORACIC_3

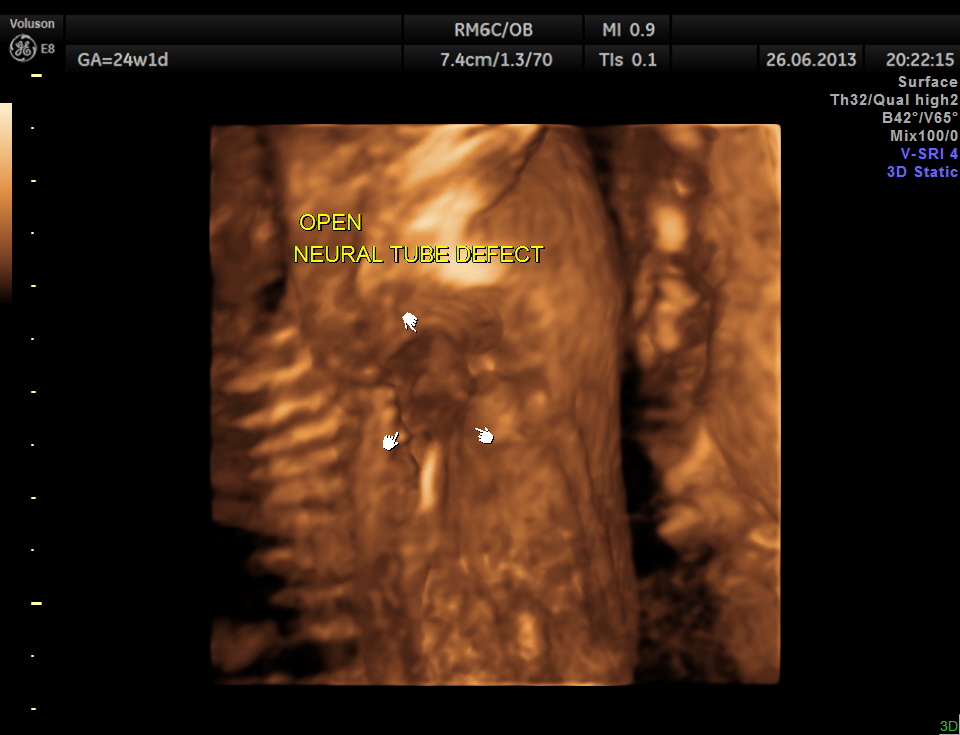

the next is a 3 d image of the open neural tube defect in the thoracic region

OPEN NTD THORACIC_4

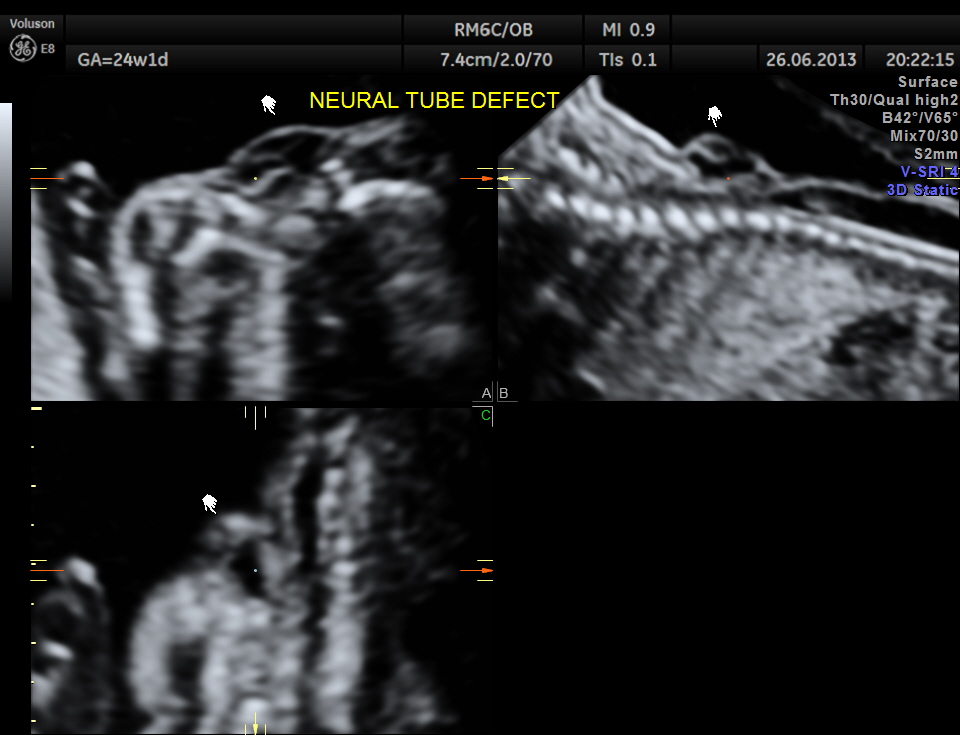

the following images are reconstructed images.

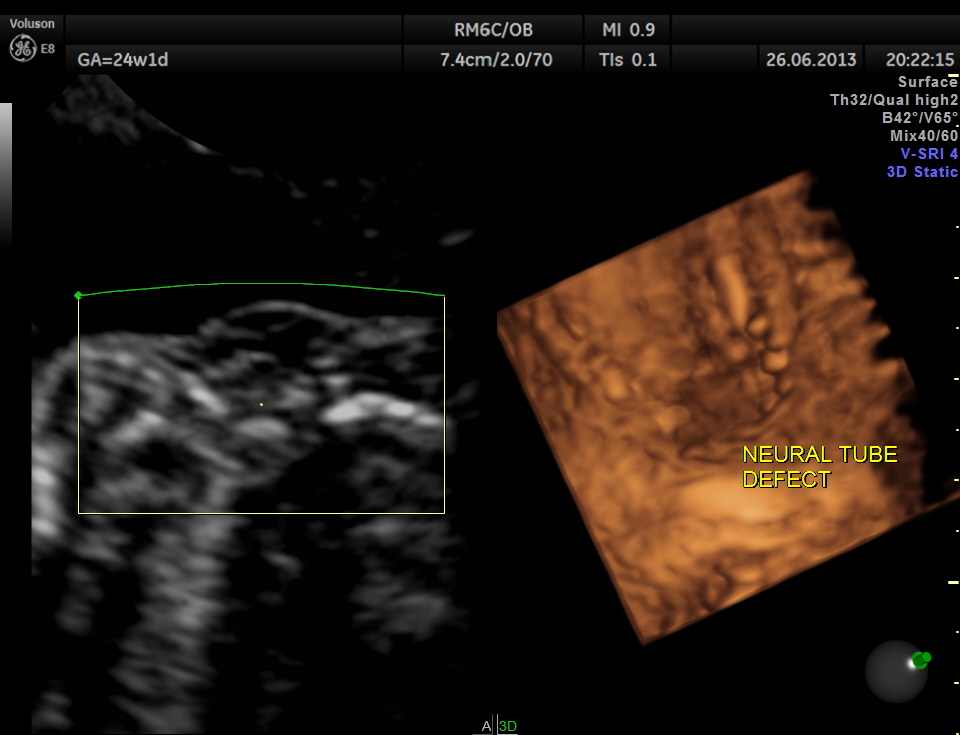

OPEN NTD THORACIC_5

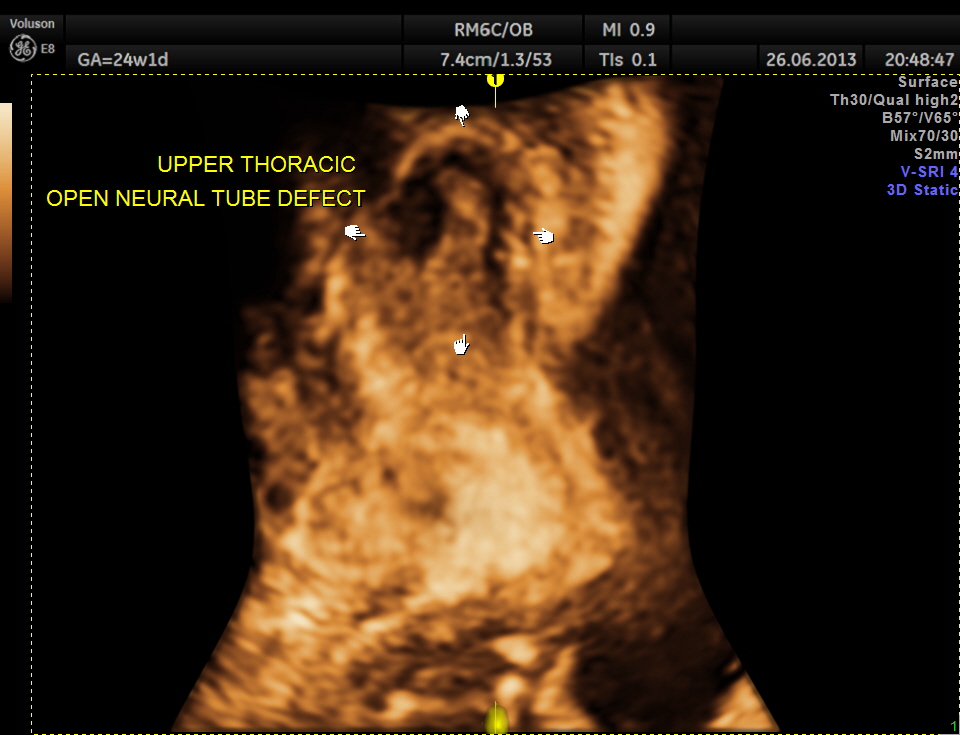

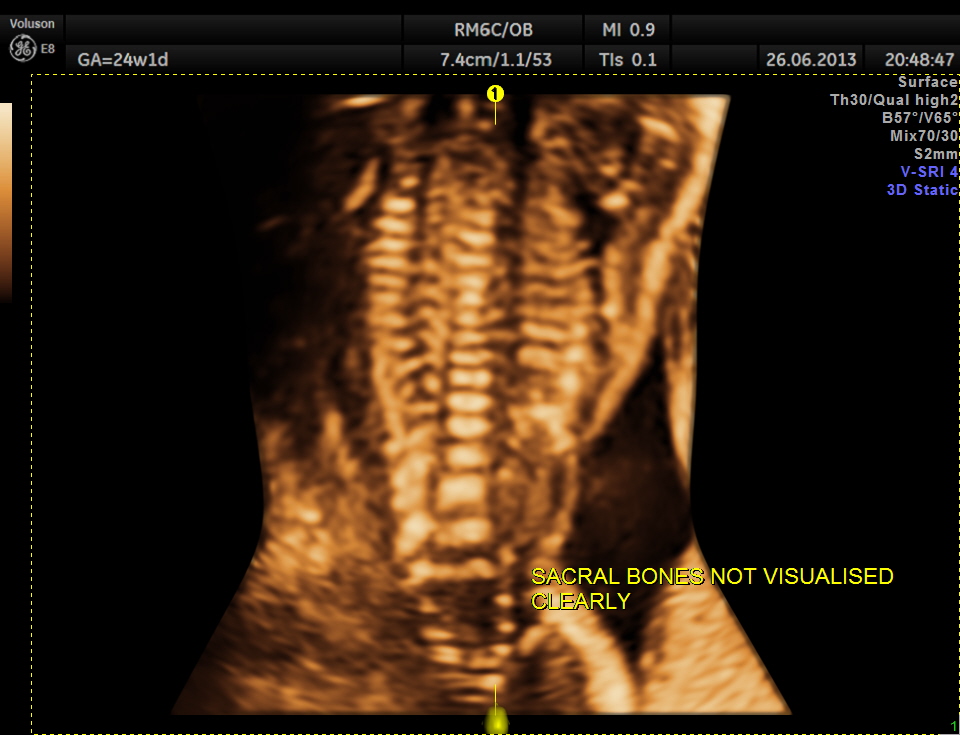

omniview reconstruction

omniview reconstruction

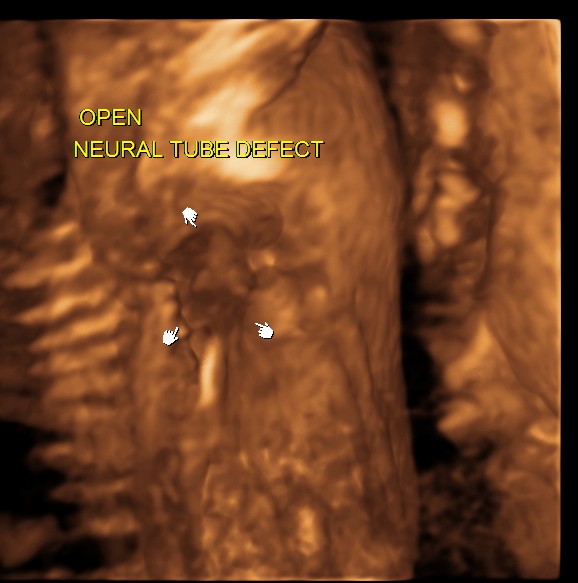

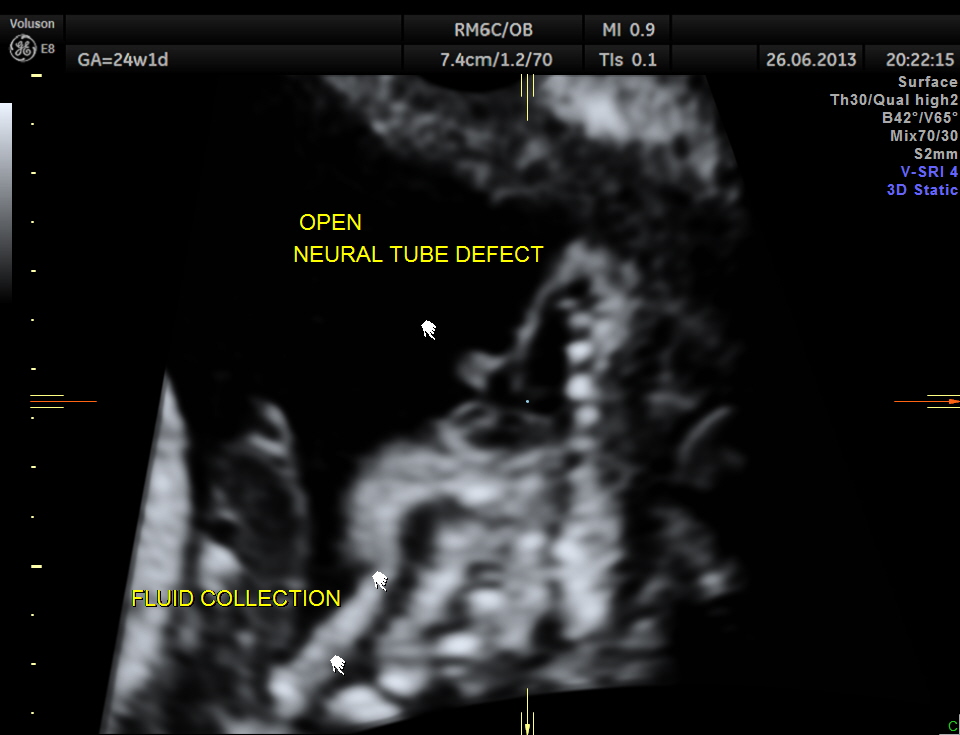

OPEN NTD THORACIC_23OPEN NTD THORACIC_22

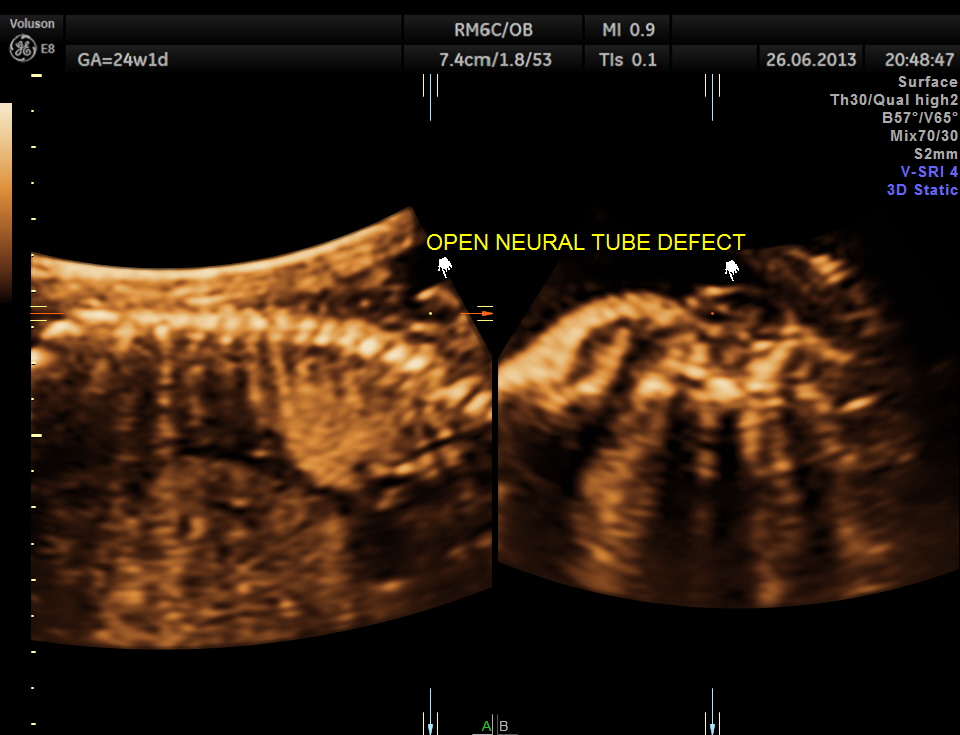

OPEN NTD THORACIC_17

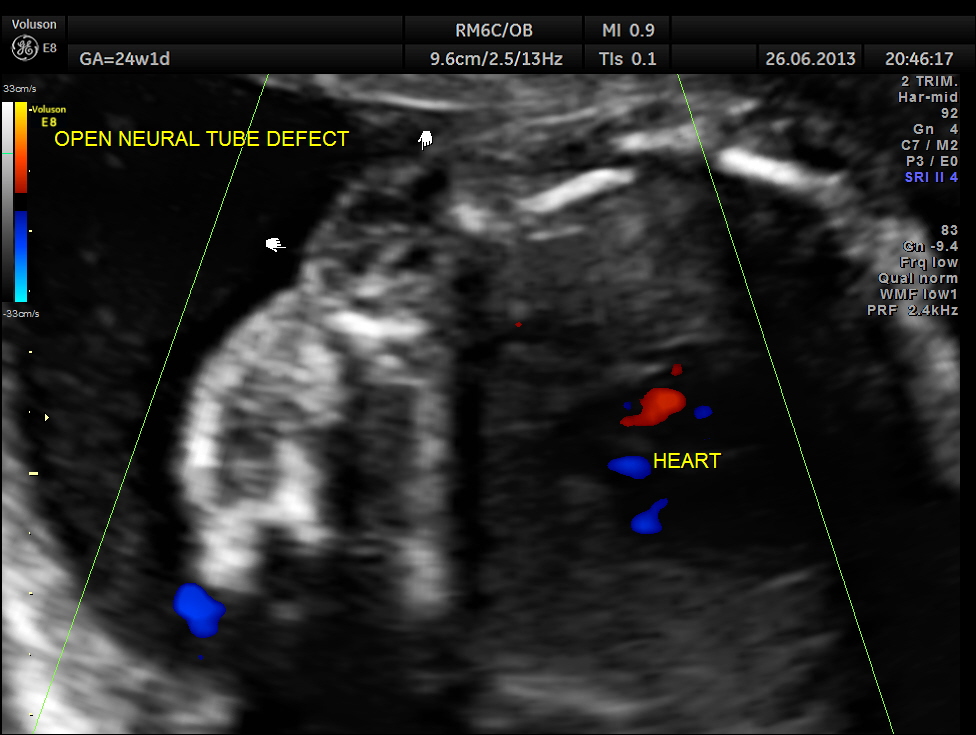

the following image shows the open neural tube defect at the same level as the heart.

OPEN NTD THORACIC_16

OPEN NTD THORACIC_18

moral of the case : a thorough  examination of the spine is essential whenever a hydrocephalus is seen , especially with a distorted cerebellum.

I have a few questions for those who read this post.

This lady presented at 24 weeks of gestation . What is the advise given to her in India , with the 20 weeks cut-off for medical termination for pregnancy.? What is done in other  places ?

3 thoughts on “HYDROCEPHALUS , OPEN NEURAL TUBE DEFECT

  1. Hi,
    Here in Spain, we refer these cases to a fetal surgery center, in order to evaluate the case porpoused to prenatal surgical therapy of the myelomeningocele. I send you the contact info of Vall dHebron Ob/Gyn Dept. at Barcelona (Spain) http://www.medfetal.org/es/contacto.html. This is one of the Spain centers which these cases could be threated in a fetus patient.
    Pedro Royo

    Like

  2. super krish, 24 weeks in case of this type is an option in for top in uk as per the guidelines,, if pt chooses wil refer to fetal surggery center.. in gulf top will not be entertained at any age

    Like
