This was a 61 year old gentleman , who presented with complaints of acute abdominal distension , pain and history of constipation of 3 days duration . He showed the following findings :

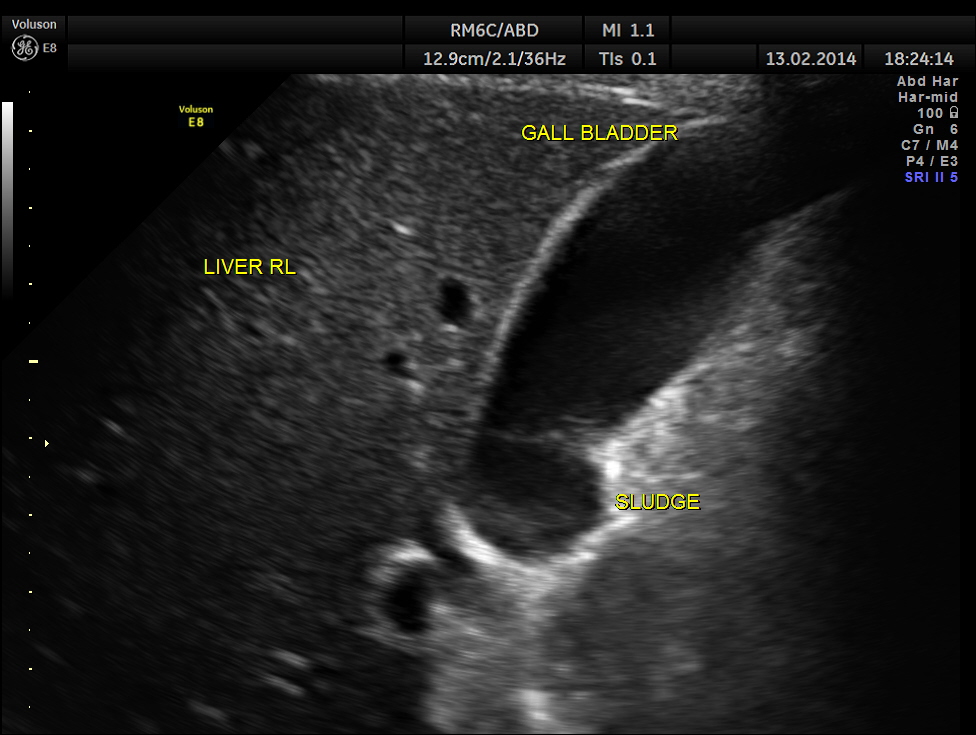

distended gall bladder with sludge
normal CBD and Portal vein

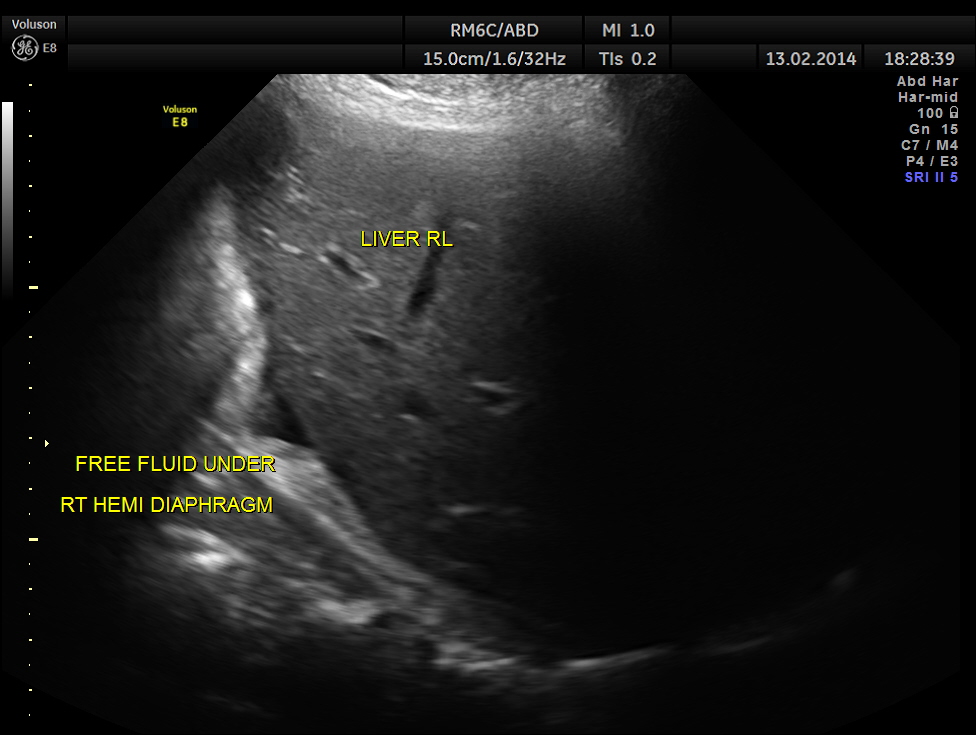

minimal free fluid in the abdomen

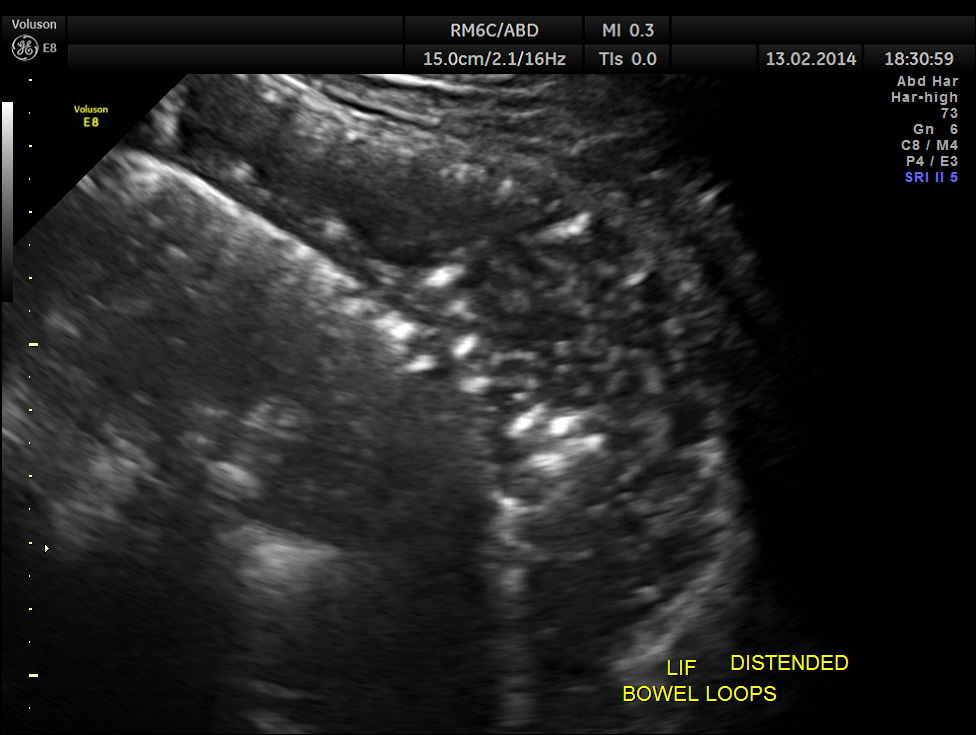

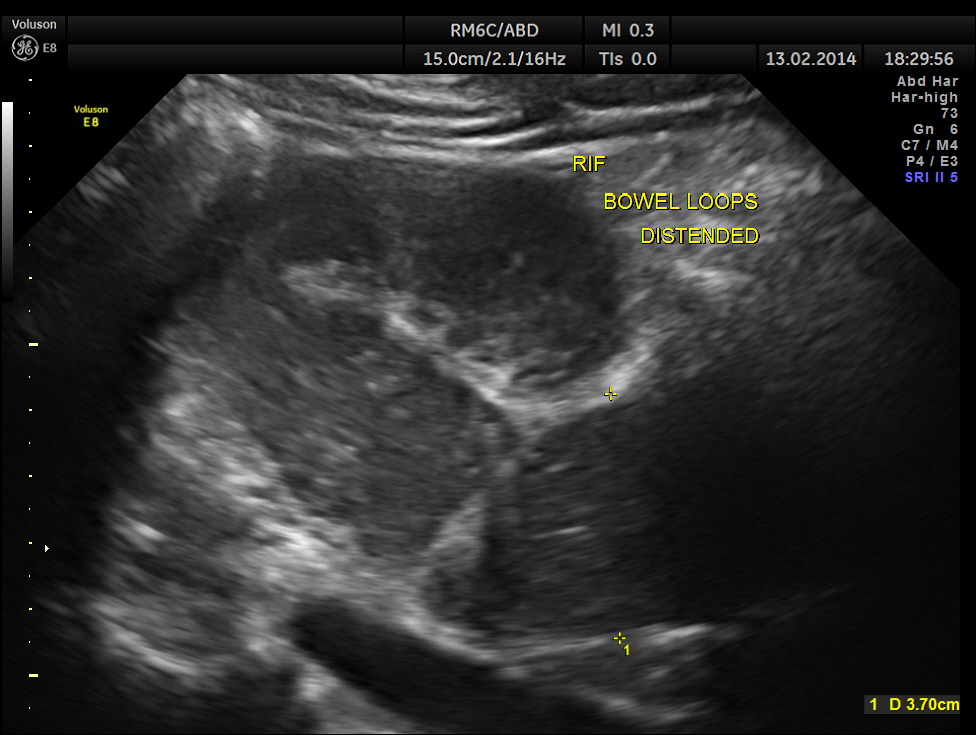

grossly distended bowel loops

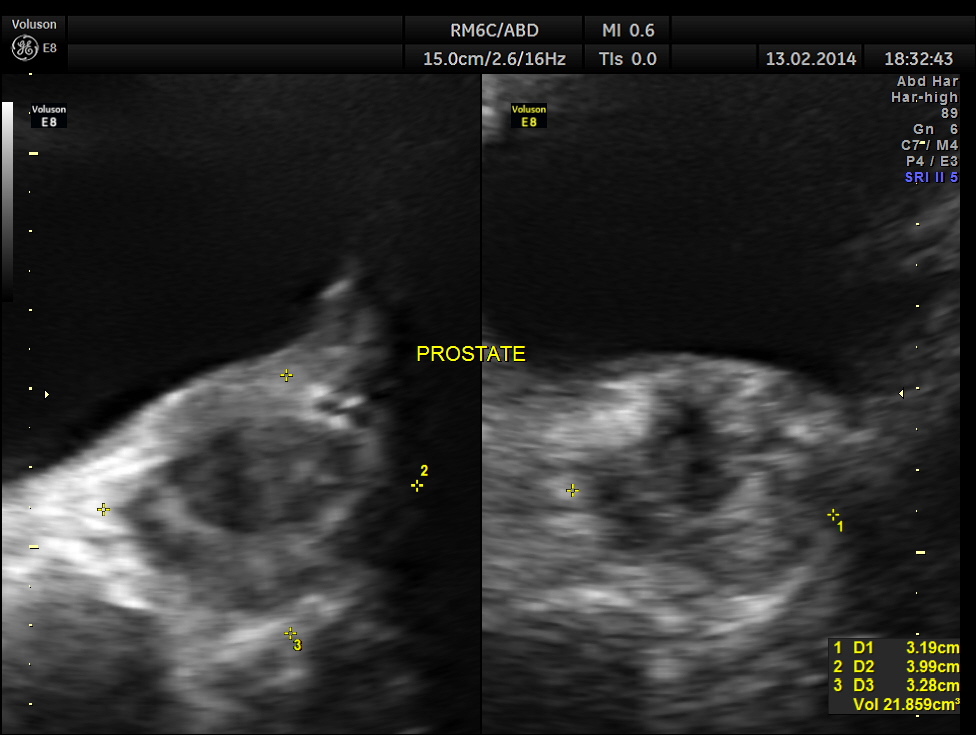

mildly enlarged prostate
From his clinical presentation and the above findings , a diagnosis of intestinal obstruction was thought of and he was referred to a surgeon for further management.

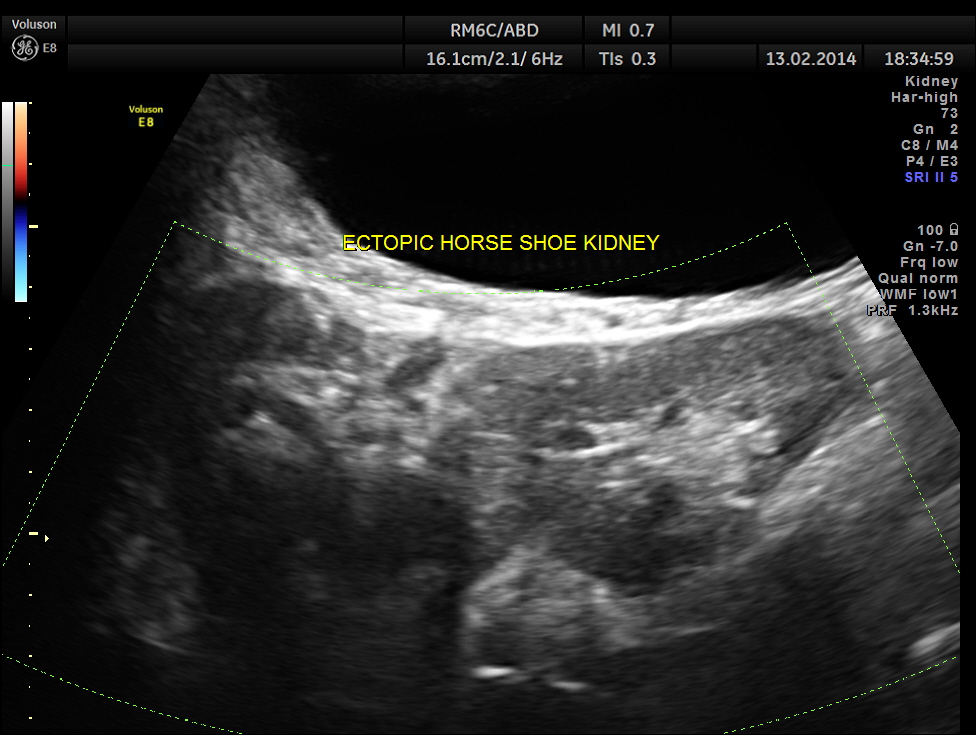

The following are the pictures of the kidney , which show the congenital horse shoe kidneys , placed ectopically in the pelvis. He had no urinary symptoms or low back ache at any time .

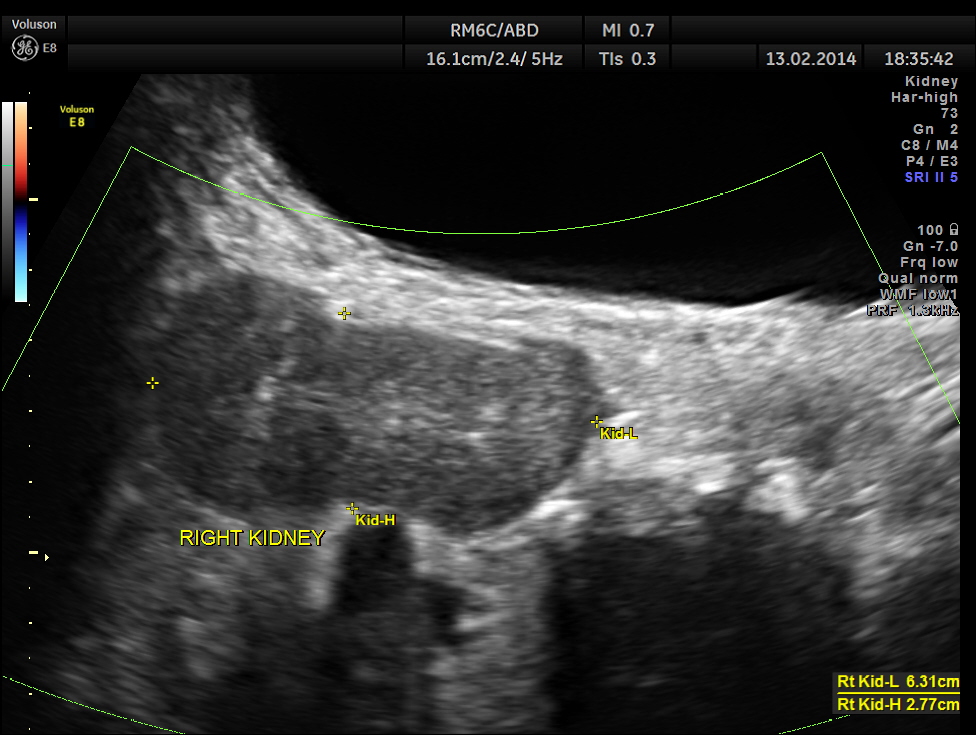

The right and left portions of the horse shoe are shown separately below

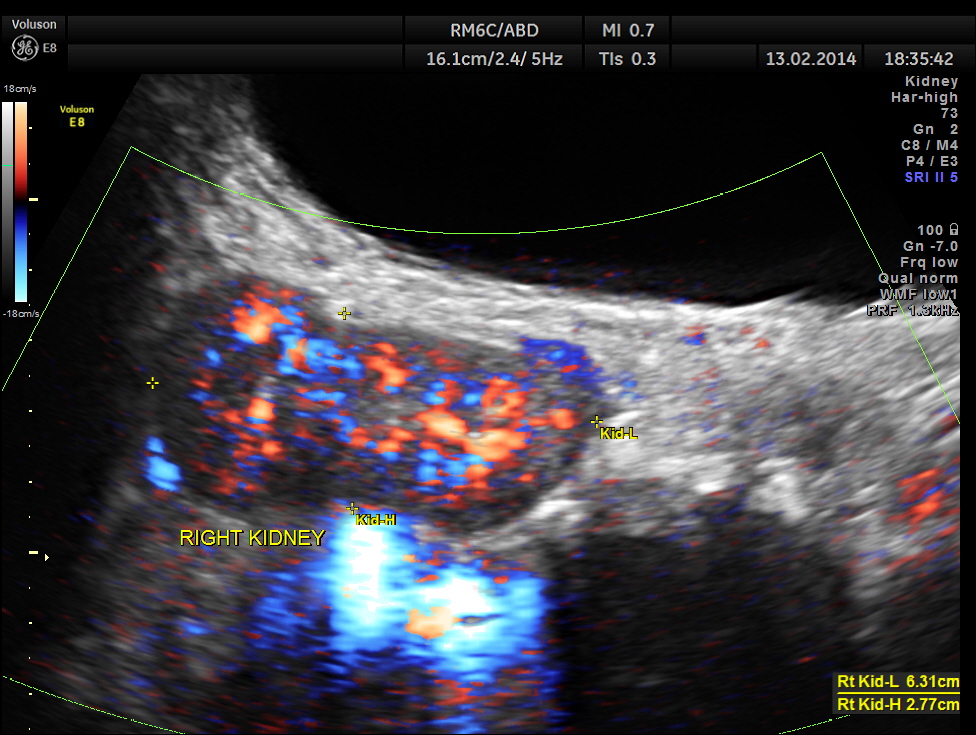

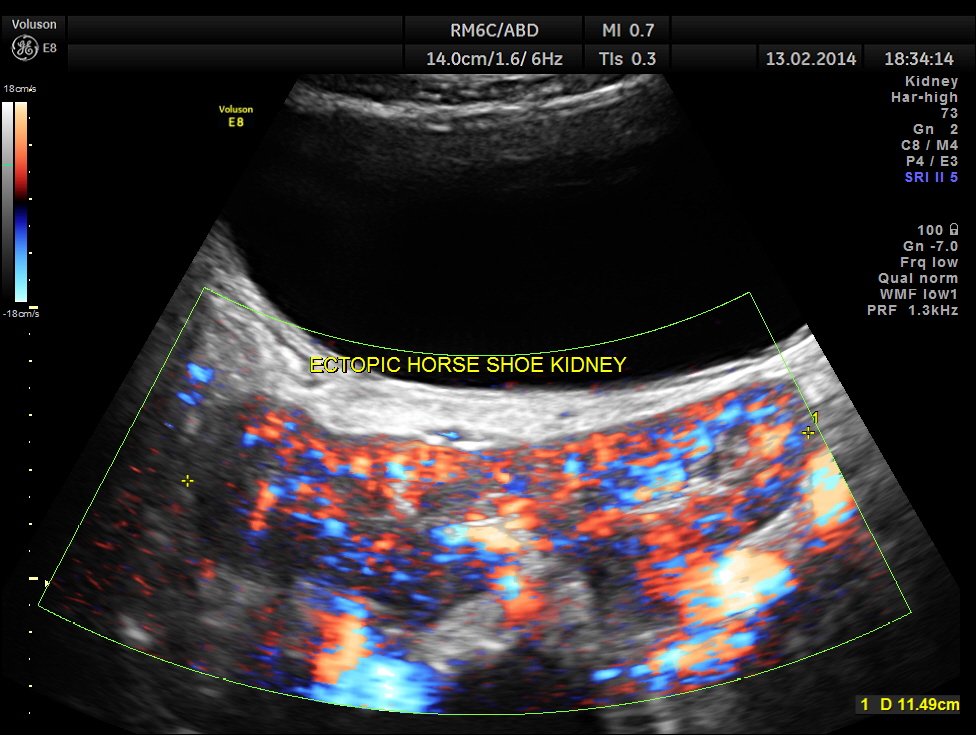

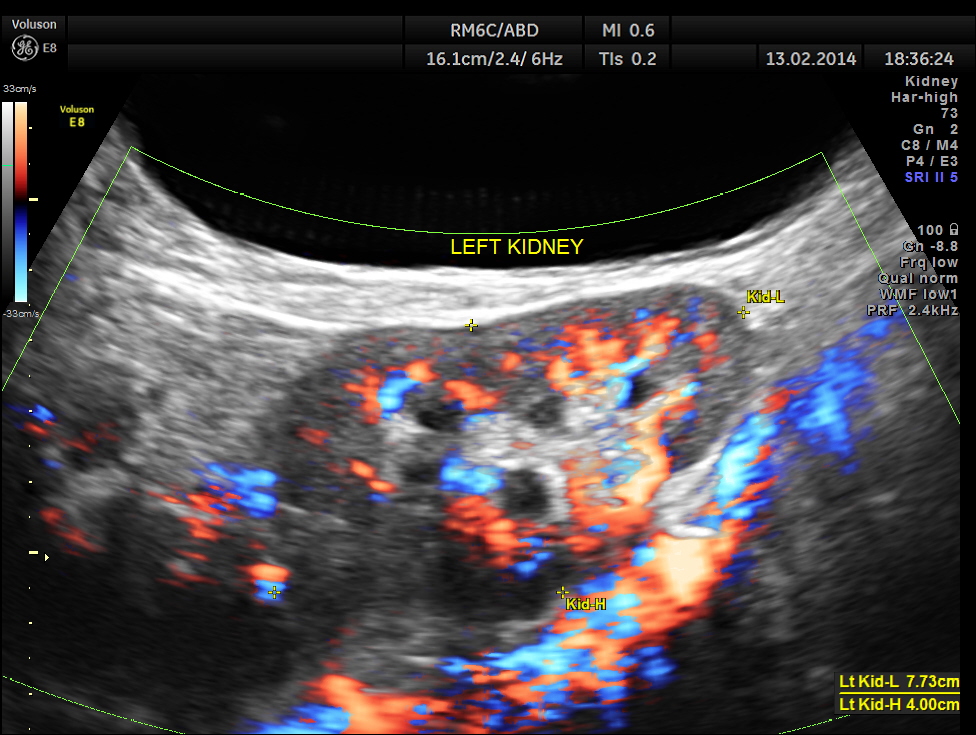

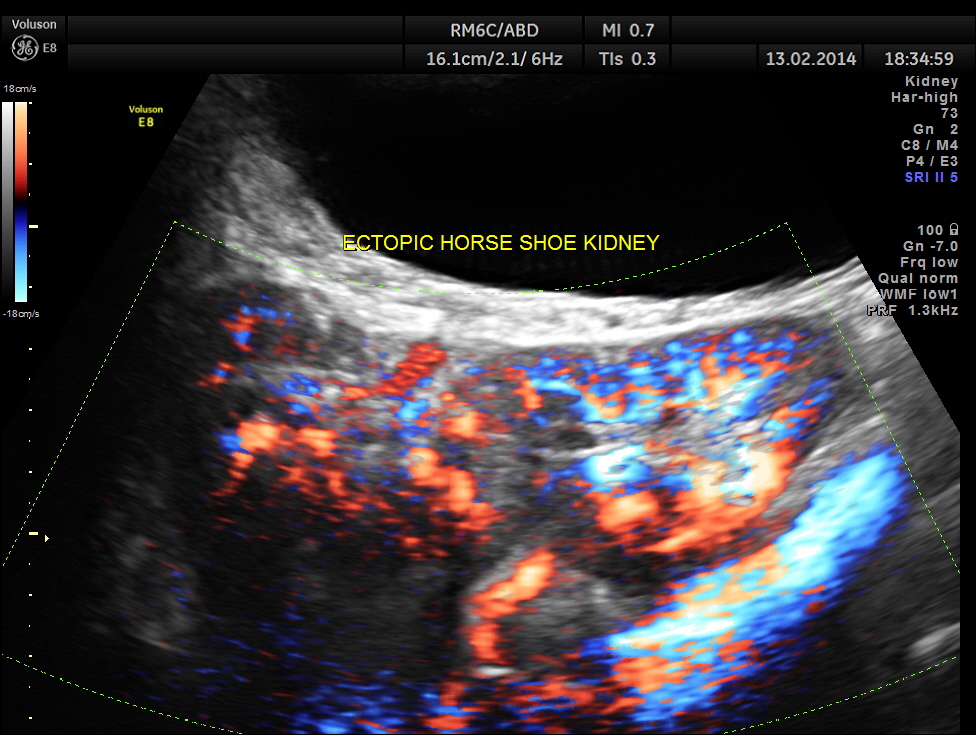

The power doppler pictures are given below.

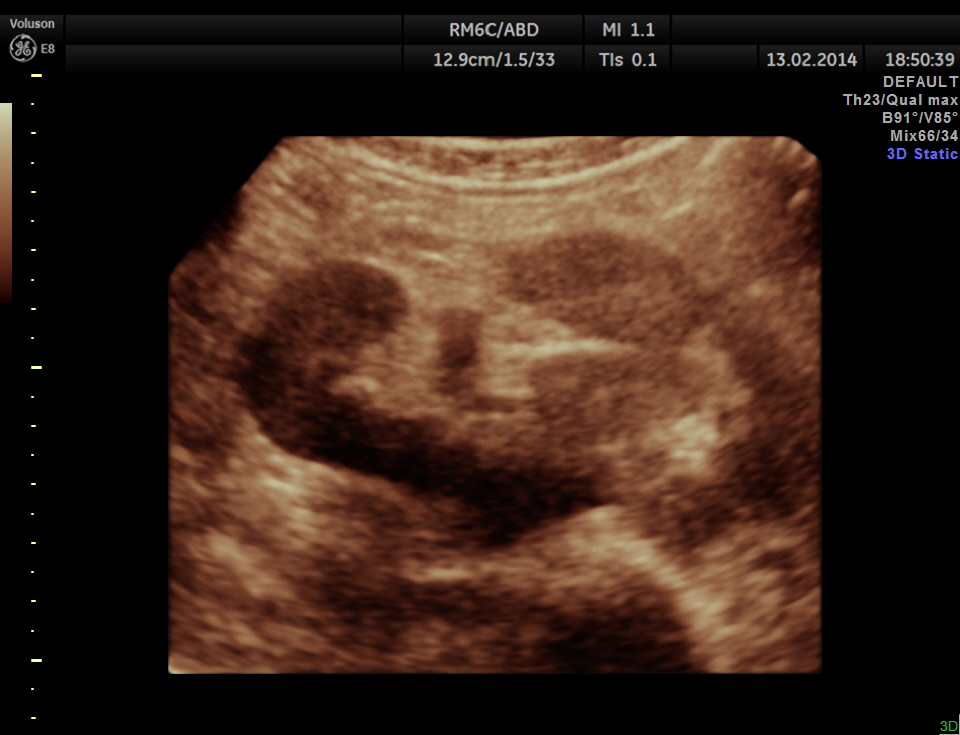

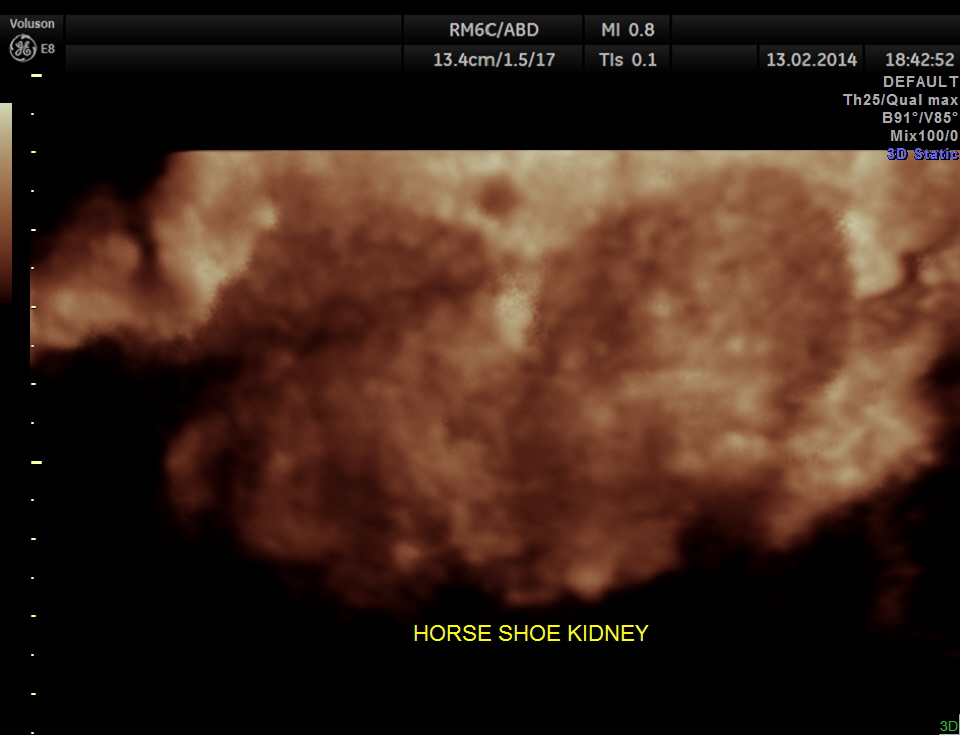

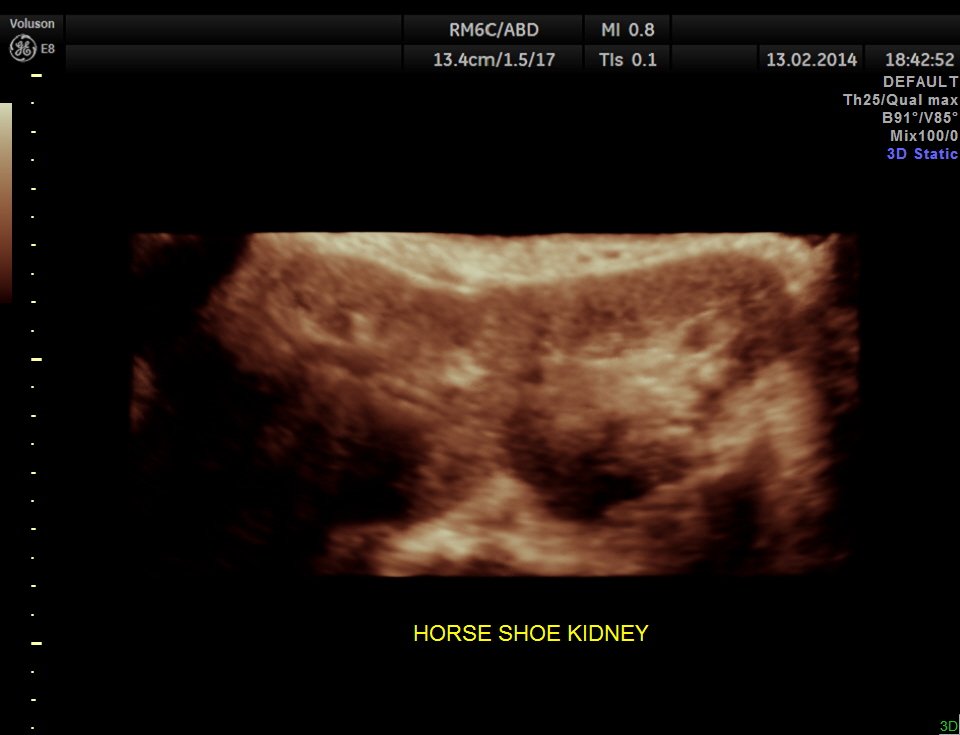

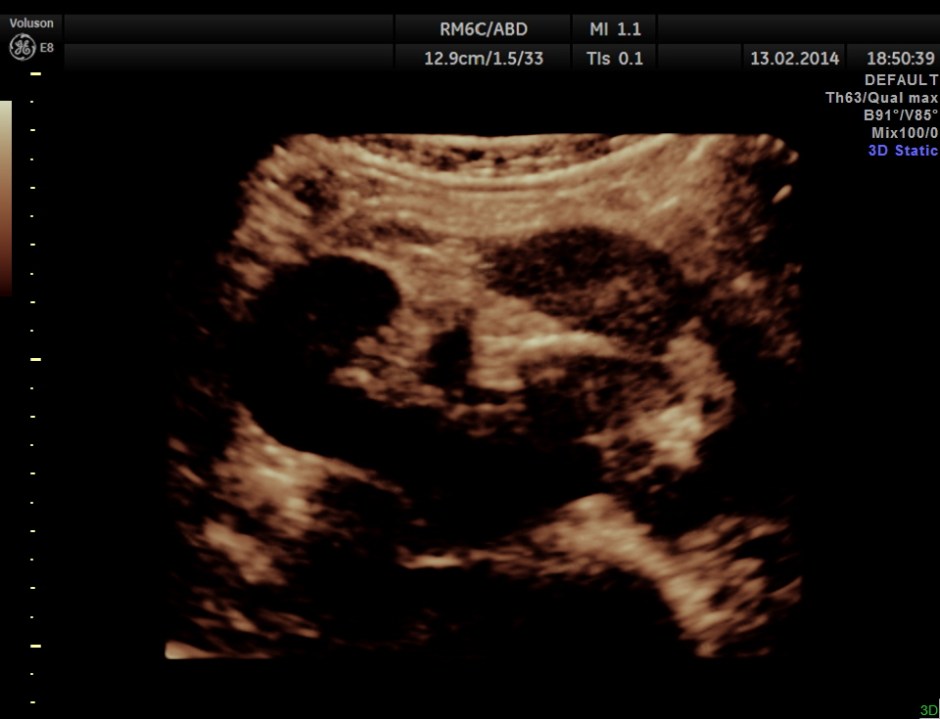

some of the reconstructed images are given below.

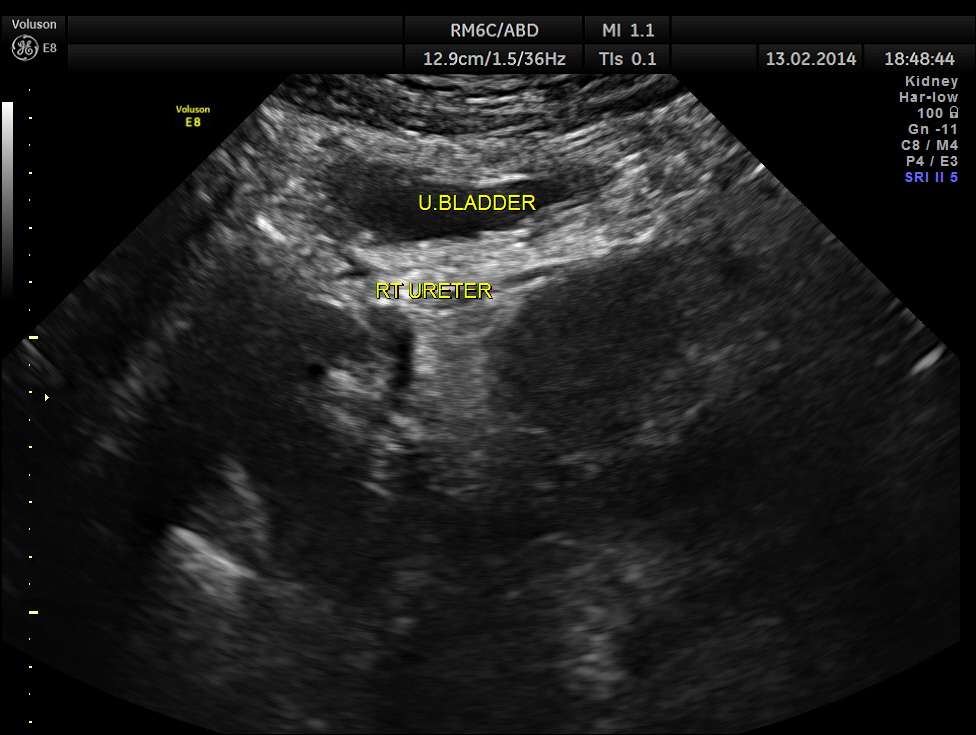

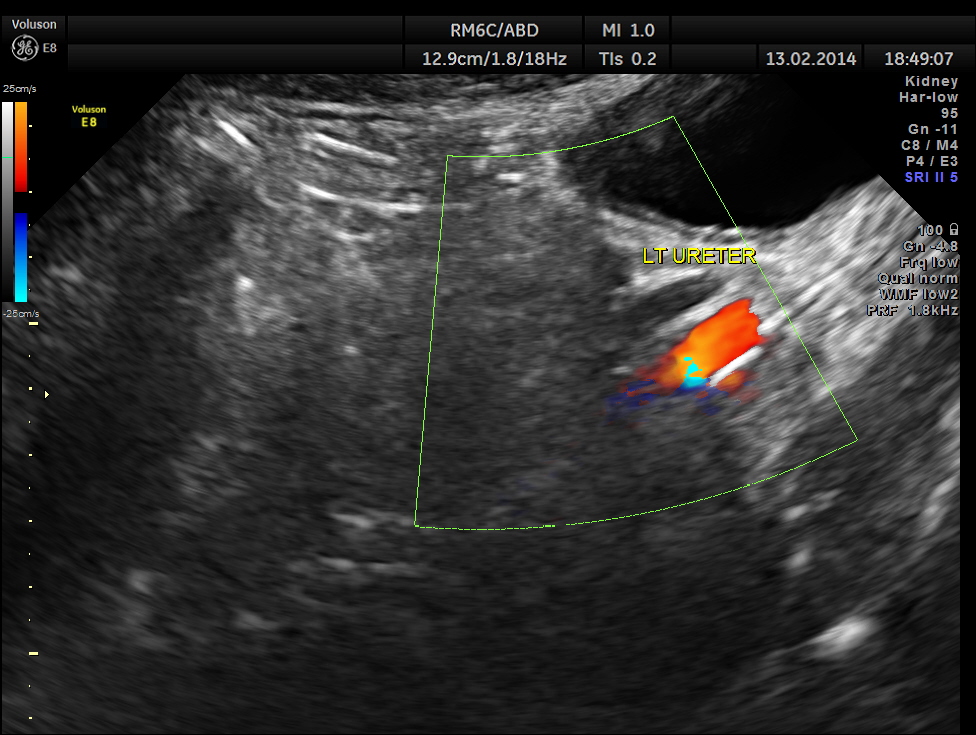

the two ureters are shown below separately.
This patient was conservatively managed for his suspected intestinal obstruction and recovered fully and is doing well now.
The horse shoe kidneys were truly incidental findings.
Notable persons with this condition ( from wikipedia )
- Mel Gibson is affected with this condition.
- Sam Kinison, a popular American comedian, also had this condition.
- Natalie Baitson, famous singer from Gibraltar
Horseshoe kidney, also known as ren arcuatus (in Latin), renal fusion or super kidney, is a congenital disorder affecting about 1 in 500 people.
In this disorder, the patient’s kidneys fuse together to form a horseshoe-shape during development in the womb. The fused part is the isthmus of the horseshoe kidney.
Fusion abnormalities of the kidney can be categorized into two groups: horseshoe kidney and crossed fused ectopia. The ‘horseshoe kidney’ is the most common renal fusion anomaly.
In patients with this condition, the central portion of the kidney may be found just inferior to the inferior mesenteric arterybecause the normal embryologic ascent of the kidneys is arrested by its presence in people with central fusion of the kidneys.Horseshoe kidney is often asymptomatic, though persons affected by this condition may experience nausea, abdominal discomfort, kidney stones and urinary tract infections at greater frequency than those without renal fusion. There is currently no cure for renal fusion other than symptomatic treatment.
Imaging Findings : The 2 kidneys on opposite sides of the body with the lower poles fused in midline Midline or symmetrical fusion (90% of cases) May be missed on US, therefore pay careful attention to identification of lower poles of kidneys. Renal long axis medially orientated Lower poles with curved configuration, elongation and poorly-defined Isthmus crosses midline anterior to spine and great vessels US for diagnosis in utero IVP followed by CT or scintigraphy for pre-operative assessment
Variant arterial supply Multiple, bilateral renal arteries Inferior mesenteric artery always crosses the isthmus Arteries arising from aorta or common iliac, internal iliac, external iliac or inferior mesenteric arteries
The lower poles of these kidneys fuse in the midline anterior to the aorta and spine. The isthmus is usually located at L4/5 level between the aorta and IMA.
Nuclear medicine (DMSA) scan confirms horseshoe kidney with fusion of both renal lower poles.
- Kidney obstruction – abnormal placement of ureter may lead to obstruction and dilation of the kidney.
- Kidney infections – associated with vesicoureteral reflux.
- Kidney stones – deviant orientation of kidneys combined with slow urine flow and kidney obstruction may lead to kidney stones.
- Kidney cancer – increased risk of renal cancer, especially Wilms’ tumor, transitional cell carcinoma, and an occasional case report of carcinoid tumor. Despite increased risk, the overall risk is still relatively low.
The prevalence of horseshoe kidneys in females with Turner Syndrome is about 15%.
It can be associated with trisomy
